Bearings
Axle Parts >>

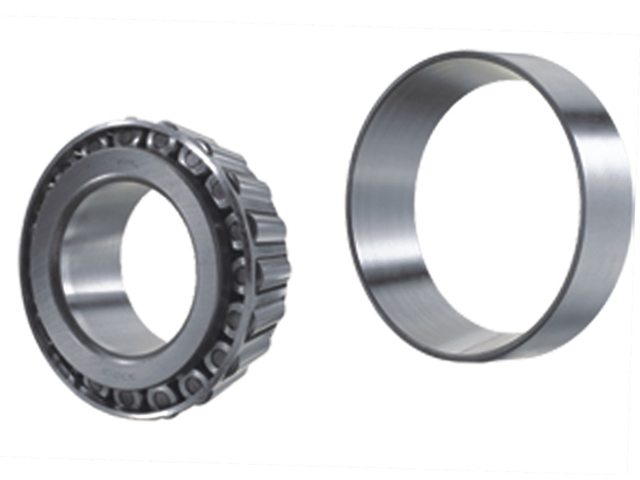

- XLB tapered roller bearings are made of high quality vacuum-degassed steel.
- Convex rollers are utilized to extend service life of bearing.
- Accommodating high combined loads, radial loads or axial loads.
- Each tapered roller bearing set contains a precision matched cup and cone with tighter dimensional tolerance that are specially designed to maximize bearing performance and life.
- XLB can supply metric and inch bearings, and the inner diameter range form 65mm to 110mm,was applied to European, American and Asian truck & trailers.
Truck and Trailer Parts
New Products

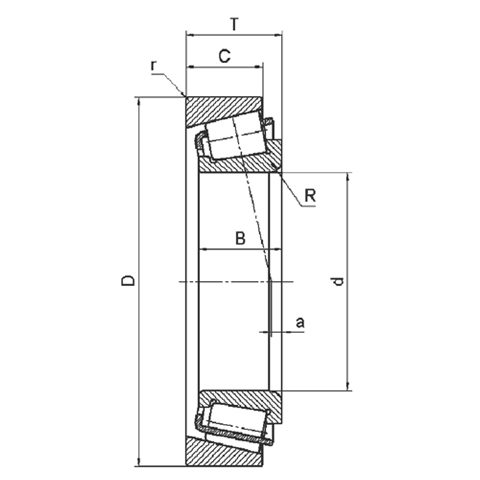

| Boundary Dimension (mm) | Load Center a | Mass kg | Part No. | |||||||
| d | D | T | B | C | R min | R min | Cone | Cup | ||
| 80 | 140 | 35.25 | 33 | 28 | 2.5 | 2 | 4.25 | 2.180 | 32216 | - |
| 90 | 160 | 42.6 | 40 | 34 | 2.5 | 2 | 6.60 | 3.490 | 32218 | - |
| 80 | 130 | 37 | 37 | 29 | 2.5 | 0.8 | 7.00 | 1.930 | 33116 | - |
| 90 | 150 | 45 | 45 | 35 | 3 | 1 | 10.00 | 3.130 | 33118 | - |
| 65 | 120 | 41 | 41 | 32 | 2 | 1.5 | 7.50 | 2.020 | 33213 | - |
| 75 | 130 | 41 | 41 | 31 | 2 | 1.5 | 9.00 | 2.200 | 33215 | - |
| 85 | 150 | 49 | 49 | 37 | 2.5 | 2 | 11.50 | 3.580 | 33217 | - |
| 82.55 | 139.992 | 36.512 | 36.098 | 28.575 | 3.5 | 3.3 | 5.50 | 2.200 | 580 | 572 |
| 95.25 | 152.4 | 39.688 | 36.322 | 30.162 | 5 | 3.3 | 2.60 | 2.510 | 594A | 592A |
| 69.85 | 136.525 | 41.275 | 41.275 | 31.75 | 3.5 | 3.3 | 11.40 | 2.630 | 643 | 632 |
| 82.55 | 146.05 | 41.275 | 41.275 | 31.75 | 3.5 | 3.3 | 7.85 | 2.740 | 663 | 653 |
| 85.725 | 146.05 | 41.275 | 41.275 | 31.75 | 3.5 | 3.3 | 8.00 | 2.650 | 665 | 653 |
| 80.962 | 150.089 | 44.45 | 46.672 | 36.512 | 5 | 3.3 | 12.00 | 3.430 | 740 | 742 |
| 85.026 | 150.089 | 44.45 | 46.672 | 36.512 | 3.5 | 3.3 | 12.00 | 3.250 | 749 | 742 |
| 88.9 | 161.925 | 47.625 | 48.26 | 38.1 | 3.5 | 3.3 | 12.00 | 4.090 | 759 | 752 |
| 66 | 124 | 41.5 | 41.5 | 34 | 7 | 3.5 | 12.50 | 2.200 | H212749 | H212710 |
| 66.675 | 122.238 | 38.1 | 38.354 | 29.718 | 3.5 | 3.3 | 11.10 | 1.850 | HM212049 | HM212011 |
| 76 | 132 | 39 | 39 | 32 | 7 | 3.5 | 10.00 | 2.090 | HM215249 | HM215210 |
| 89.974 | 146.975 | 40 | 40 | 32.5 | 7 | 3.5 | 8.60 | 2.550 | HM218248 | HM218210 |
| 89.974 | 146.975 | 40 | 40 | 32.5 | 7 | 3.5 | 8.60 | 2.550 | HM218248E | HM218210E |
| 100 | 157 | 42 | 42 | 34 | 8 | 3.5 | 2.00 | 2.820 | HM220149 | HM220110 |
| 88.9 | 152.4 | 39.688 | 39.688 | 30.163 | 3.5 | 3.3 | 2.60 | 2.840 | HM518445 | HM518410 |
| 65 | 120 | 39 | 38.5 | 32 | 3 | 2.5 | 10.90 | 1.874 | JH211749 | JH211710 |
| 80 | 130 | 35 | 34 | 28.5 | 3 | 2.5 | 4.90 | 1.730 | JM515649 | JM515610 |
| 90 | 145 | 35 | 34 | 27 | 6 | 2.5 | 2.00 | 2.130 | JM718149A | JM718110 |
