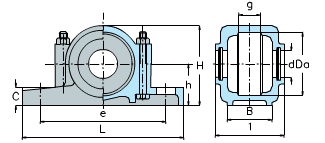

| Boundary dimensions(mm) | Mass(Kg) | Bearing Number | |||||||||||
| D H8 | h | a | e | H | C | g | B | L | d | N | N1 | (Approx.) | XLB |
| 47 | 31 | 128 | 98 | 58.5 | 14 | 14 | 34 | 50 | 22 | 16 | 12 | 0.67 | 1504 |
| 52 | 34 | 134 | 104 | 64 | 15 | 18 | 37 | 57 | 22 | 16 | 12 | 0.78 | 1505 |
| 62 | 39 | 150 | 118 | 74 | 15 | 20 | 40 | 60 | 28 | 18 | 12 | 1.00 | 1506 |
| 72 | 45 | 177 | 140 | 87.5 | 17 | 23 | 44 | 69 | 31 | 20 | 14 | 1.60 | 1507 |
| 80 | 48 | 190 | 150 | 93 | 18 | 23 | 53 | 75 | 36 | 22 | 14 | 1.95 | 1508 |
| 85 | 52 | 195 | 157 | 100 | 19 | 23 | 53 | 77 | 41 | 23 | 14 | 2.20 | 1509 |
| 90 | 54 | 206 | 165 | 105 | 21 | 25 | 56 | 83 | 46 | 23 | 14 | 2.80 | 1510 |
| 100 | 62 | 229 | 183 | 119 | 22 | 28 | 67 | 90 | 52 | 25 | 18 | 3.70 | 1511 |
| 110 | 69 | 249 | 205 | 131 | 22 | 31 | 69 | 92 | 56 | 26 | 18 | 4.80 | 1512 |
| 120 | 73 | 266 | 217 | 139 | 26 | 31 | 73 | 94 | 61 | 26 | 18 | 5.50 | 1513 |
| 130 | 78 | 280 | 225 | 151 | 26 | 31 | 75 | 95 | 66 | 26 | 18 | 6.00 | 1515 |
| 140 | 86 | 300 | 240 | 164 | 26 | 33 | 78 | 110 | 72 | 28 | 18 | 8.20 | 1516 |
| 150 | 92 | 320 | 260 | 175 | 28 | 36 | 88 | 125 | 79 | 30 | 18 | 10.00 | 1517 |
| 160 | 100 | 360 | 290 | 195 | 30 | 40 | 90 | 130 | 82 | 40 | 22 | 13.00 | 1518 |
