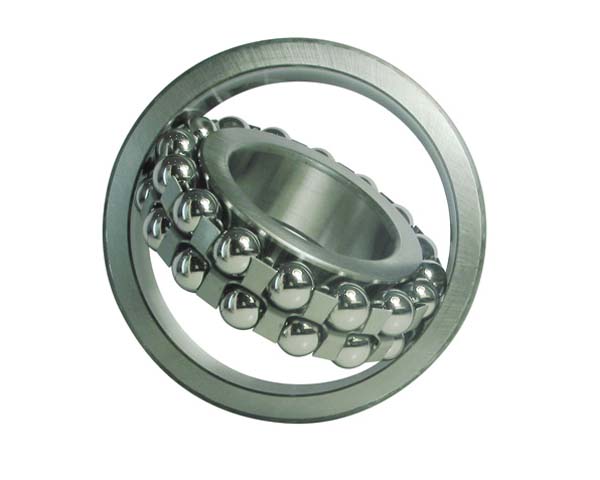

Self-aligning Ball Bearings >>
Truck and Trailer Parts
| Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | Bearing Number | |||||
| d | D | B | rs min | Cr | Cor | Grease | Oil | (Approx.) | XLB |
| 10 | 35 | 17 | 0.6 | 10.1 | 2.15 | 17,000 | 20,000 | 0.083 | 2300 |
| 12 | 37 | 17 | 1 | 11.8 | 2.71 | 15,000 | 17,000 | 0.091 | 2301 |
| 15 | 42 | 17 | 1 | 12.0 | 2.90 | 13,000 | 15,000 | 0.114 | 2302 |
| 17 | 47 | 19 | 1 | 14.4 | 3.55 | 11,000 | 14,000 | 0.156 | 2303 |
| 20 | 52 | 21 | 1.1 | 18.1 | 4.70 | 10,000 | 12,000 | 0.206 | 2304 |
| 20 | 52 | 21 | 1.1 | 18.1 | 4.70 | 10,000 | 12,000 | 0.201 | 2304K |
| 25 | 62 | 24 | 1.1 | 24.4 | 6.60 | 8,500 | 10,000 | 0.334 | 2305 |
| 25 | 62 | 24 | 1.1 | 24.4 | 6.60 | 8,500 | 10,000 | 0.326 | 2305K |
| 30 | 72 | 27 | 1.1 | 31.5 | 8.75 | 7,200 | 8,500 | 0.496 | 2306 |
| 30 | 72 | 27 | 1.1 | 31.5 | 8.75 | 7,200 | 8,500 | 0.485 | 2306K |
| 35 | 80 | 31 | 1.5 | 39.5 | 11.3 | 6,300 | 7,400 | 0.671 | 2307 |
| 35 | 80 | 31 | 1.5 | 39.5 | 11.3 | 6,300 | 7,400 | 0.653 | 2307K |
| 40 | 90 | 33 | 1.5 | 45.0 | 13.5 | 5,600 | 6,600 | 0.918 | 2308 |
| 40 | 90 | 33 | 1.5 | 45.0 | 13.5 | 5,600 | 6,600 | 0.895 | 2308K |
| 45 | 100 | 36 | 1.5 | 54.0 | 16.7 | 5,000 | 5,900 | 1.23 | 2309 |
| 45 | 100 | 36 | 1.5 | 54.0 | 16.7 | 5,000 | 5,900 | 1.2 | 2309K |
| 50 | 110 | 40 | 2 | 64.5 | 20.2 | 4,600 | 5,400 | 1.63 | 2310 |
| 50 | 110 | 40 | 2 | 64.5 | 20.2 | 4,600 | 5,400 | 1.59 | 2310K |
| 55 | 120 | 43 | 2 | 75.5 | 24.0 | 4,200 | 4,900 | 2.1 | 2311 |
| 55 | 120 | 43 | 2 | 75.5 | 24.0 | 4,200 | 4,900 | 2.05 | 2311K |
| 60 | 130 | 46 | 2.1 | 87.0 | 28.2 | 3,800 | 4,500 | 2.59 | 2312 |
| 60 | 130 | 46 | 2.1 | 87.0 | 28.2 | 3,800 | 4,500 | 2.52 | 2312K |
| 65 | 140 | 48 | 2.1 | 96.0 | 32.5 | 3,600 | 4,200 | 3.2 | 2313 |
| 65 | 140 | 48 | 2.1 | 96.0 | 32.5 | 3,600 | 4,200 | 3.12 | 2313K |
| 70 | 150 | 51 | 2.1 | 109 | 37.5 | 3,300 | 3,900 | 3.92 | 2314 |
| 75 | 160 | 55 | 2.1 | 123 | 43.0 | 3,100 | 3,600 | 4.78 | 2315 |
| 75 | 160 | 55 | 2.1 | 123 | 43.0 | 3,100 | 3,600 | 4.66 | 2315K |
| 80 | 170 | 58 | 2.1 | 128 | 45.0 | 2,900 | 3,400 | 5.65 | 2316 |
| 80 | 170 | 58 | 2.1 | 128 | 45.0 | 2,900 | 3,400 | 5.51 | 2316K |
| 85 | 180 | 60 | 3 | 140 | 51.5 | 2,700 | 3,200 | 6.55 | 2317 |
| 85 | 180 | 60 | 3 | 140 | 51.5 | 2,700 | 3,200 | 6.39 | 2317K |
| 90 | 190 | 64 | 3 | 152 | 57.5 | 2,600 | 3,000 | 7.75 | 2318 |
| 90 | 190 | 64 | 3 | 152 | 57.5 | 2,600 | 3,000 | 7.56 | 2318K |
| 95 | 200 | 67 | 3 | 165 | 64.5 | 2,400 | 2,800 | 9.05 | 2319 |
| 95 | 200 | 67 | 3 | 165 | 64.5 | 2,400 | 2,800 | 8.83 | 2319K |
| 100 | 215 | 73 | 3 | 192 | 79.0 | 2,300 | 2,700 | 11.5 | 2320 |
| 100 | 215 | 73 | 3 | 192 | 79.0 | 2,300 | 2,700 | 11.2 | 2320K |
| 105 | 225 | 77 | 3 | 205 | 87.0 | 2,200 | 2,600 | 13.2 | 2321 |
| 110 | 240 | 80 | 3 | 217 | 94.5 | 2,100 | 2,400 | 15.8 | 2322 |
| 110 | 240 | 80 | 3 | 217 | 94.5 | 2,100 | 2,400 | 15.4 | 2322K |
