Bearings
Spherical Roller Thrust Bearings >>
Truck and Trailer Parts
New Products

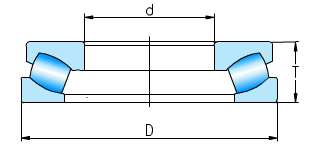

| Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | Bearing Number | ||||
| d | D | T | rs min | Ca | Coa | Oil | (Approx.) | XLB |
| 85 | 150 | 39 | 1.5 | 265 | 820 | 2,300 | 2.94 | 29317 |
| 90 | 155 | 39 | 1.5 | 285 | 915 | 2,300 | 3.08 | 29318 |
| 100 | 170 | 42 | 1.5 | 345 | 1,160 | 2,100 | 3.94 | 29320 |
| 110 | 190 | 48 | 2 | 445 | 1,500 | 1,800 | 5.78 | 29322 |
| 120 | 210 | 54 | 2.1 | 535 | 1,770 | 1,600 | 7.92 | 29324 |
| 130 | 225 | 58 | 2.1 | 615 | 2,100 | 1,500 | 9.76 | 29326 |
| 140 | 240 | 60 | 2.1 | 685 | 2,360 | 1,400 | 11.4 | 29328 |
| 150 | 250 | 60 | 2.1 | 675 | 2,390 | 1,400 | 12 | 29330 |
| 160 | 270 | 67 | 3 | 820 | 2,860 | 1,300 | 15.9 | 29332 |
| 170 | 280 | 67 | 3 | 855 | 3,050 | 1,200 | 16.6 | 29334 |
| 180 | 300 | 73 | 3 | 995 | 3,600 | 1,100 | 21.2 | 29336 |
| 190 | 320 | 78 | 4 | 1,150 | 4,250 | 1,100 | 26 | 29338 |
| 200 | 340 | 85 | 4 | 1,280 | 4,600 | 980 | 31.9 | 29340 |
