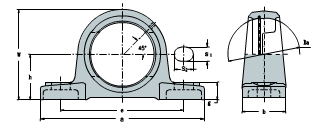

| Boundary dimensions(mm) | Mass | Bearing Number | ||||||||
| Da | h | a | e | b | S1 | S2 | g | w | Kg | XLB |
| 47 | 31.8 | 127 | 96 | 31 | 13 | 16 | 14 | 63 | 0.60 | AK204 |
| 52 | 33.3 | 140 | 105 | 38 | 13 | 19 | 15 | 66.5 | 0.72 | AK205 |
| 62 | 36.7 | 160 | 121 | 44 | 14 | 19 | 16 | 79 | 0.96 | AK206 |
| 72 | 46 | 167 | 127 | 48 | 15 | 19 | 17 | 91 | 1.13 | AK207 |
| 80 | 49.2 | 180 | 136 | 52 | 15 | 21 | 18 | 98 | 1.43 | AK208 |
| 85 | 52.4 | 189 | 146 | 54 | 15 | 21 | 20 | 105 | 1.65 | AK209 |
| 90 | 55.6 | 204 | 159 | 57 | 19 | 22 | 21 | 111.5 | 1.90 | AK210 |
| 100 | 61.9 | 217 | 172 | 60 | 19 | 22 | 22 | 123 | 2.55 | AK211 |
| 110 | 68.3 | 238 | 186 | 66 | 19 | 25 | 24 | 136 | 3.10 | AK212 |
