| Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | Bearing Number | |||||||

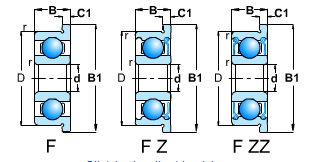

| d | D | B | D1 | C1 | rs min | Cr | Cor | Grease | Oil | (Approx.) | XLB |
| 7 | 11 | 2.5 | 12.2 | 0.6 | 0.1 | 555 | 269 | 40,000 | 47,000 | 0.77 | F677C3 |
| 8 | 12 | 2.5 | 13.2 | 0.6 | 0.1 | 515 | 252 | 38,000 | 45,000 | 0.86 | F678 |
| 8 | 12 | 2.5 | 13.2 | 0.6 | 0.1 | 515 | 252 | 38,000 | 45,000 | 0.86 | F678C3 |
| 6 | 10 | 2.5 | 11.2 | 0.6 | 0.1 | 465 | 196 | 43,000 | 51,000 | 0.74 | F676 |
| 6 | 10 | 2.5 | 11.2 | 0.6 | 0.1 | 465 | 196 | 43,000 | 51,000 | 0.74 | F676C3 |
| 7 | 11 | 2.5 | 12.2 | 0.6 | 0.1 | 555 | 269 | 40,000 | 47,000 | 0.77 | F677 |
| 4 | 7 | 2 | 8.2 | 0.6 | 0.08 | 222 | 88.0 | 54,000 | 63,000 | 0.35 | F674C3 |
| 5 | 8 | 2 | 9.2 | 0.6 | 0.08 | 217 | 91.0 | 49,000 | 57,000 | 0.4 | F675 |
| 5 | 8 | 2 | 9.2 | 0.6 | 0.08 | 217 | 91.0 | 49,000 | 57,000 | 0.4 | F675C3 |
| 3 | 6 | 2 | 7.2 | 0.6 | 0.08 | 242 | 94.0 | 60,000 | 71,000 | 0.26 | F673 |
| 3 | 6 | 2 | 7.2 | 0.6 | 0.08 | 242 | 94.0 | 60,000 | 71,000 | 0.26 | F673C3 |
| 4 | 7 | 2 | 8.2 | 0.6 | 0.08 | 222 | 88.0 | 54,000 | 63,000 | 0.35 | F674 |
| 8 | 12 | 3.5 | 13.6 | 0.8 | 0.1 | 515 | 252 | 38,000 | 45,000 | 0.86 | F678-Z |
| 8 | 12 | 3.5 | 13.6 | 0.8 | 0.1 | 515 | 252 | 38,000 | 45,000 | 0.86 | F678-ZZ |
