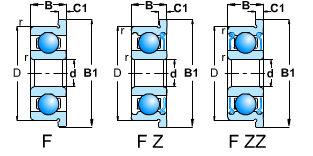

| Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | Bearing Number | |||||||
| d | D | B | D1 | C1 | rs min | Cr | Cor | Grease | Oil | (Approx.) | XLB |
| 1.5 | 4 | 1.2 | 5 | 0.4 | 0.15 | 102 | 29.0 | 88,000 | 100,000 | 0.09 | F68/1.5 |
| 1.5 | 4 | 1.2 | 5 | 0.4 | 0.15 | 102 | 29.0 | 88,000 | 100,000 | 0.09 | F68/1.5C3 |
| 2.5 | 6 | 1.8 | 7.1 | 0.5 | 0.08 | 209 | 73.0 | 65,000 | 76,000 | 0.26 | F68/2.5 |
| 2.5 | 6 | 1.8 | 7.1 | 0.5 | 0.08 | 209 | 73.0 | 65,000 | 76,000 | 0.26 | F68/2.5C3 |
| 1 | 3 | 1 | 3.8 | 0.3 | 0.05 | 80 | 22.0 | 120,000 | 140,000 | 0.06 | F681 |
| 1 | 3 | 1 | 3.8 | 0.3 | 0.05 | 80 | 22.0 | 120,000 | 140,000 | 0.06 | F681C3 |
| 2 | 5 | 1.5 | 6.1 | 0.5 | 0.08 | 171 | 51.0 | 74,000 | 87,000 | 0.17 | F682 |
| 2 | 5 | 1.5 | 6.1 | 0.5 | 0.08 | 171 | 51.0 | 74,000 | 87,000 | 0.17 | F682C3 |
| 3 | 7 | 2 | 8.1 | 0.5 | 0.1 | 390 | 130 | 58,000 | 68,000 | 0.38 | F683 |
| 3 | 7 | 2 | 8.1 | 0.5 | 0.1 | 390 | 130 | 58,000 | 68,000 | 0.38 | F683C3 |
| 4 | 9 | 2.5 | 10.3 | 0.6 | 0.15 | 640 | 224 | 49,000 | 57,000 | 0.76 | F684 |
| 4 | 9 | 2.5 | 10.3 | 0.6 | 0.15 | 640 | 224 | 49,000 | 57,000 | 0.76 | F684C3 |
| 5 | 11 | 3 | 12.5 | 0.8 | 0.15 | 715 | 282 | 43,000 | 51,000 | 1.3 | F685 |
| 5 | 11 | 3 | 12.5 | 0.8 | 0.15 | 715 | 282 | 43,000 | 51,000 | 1.3 | F685C3 |
| 6 | 13 | 3.5 | 15 | 1.0 | 0.15 | 1,080 | 440 | 39,000 | 46,000 | 2.2 | F686 |
| 6 | 13 | 3.5 | 15 | 1.0 | 0.15 | 1,080 | 440 | 39,000 | 46,000 | 2.2 | F686C3 |
| 7 | 14 | 3.5 | 16 | 1 | 0.15 | 1,170 | 505 | 37,000 | 44,000 | 2.4 | F687 |
| 7 | 14 | 3.5 | 16 | 1 | 0.15 | 1,170 | 505 | 37,000 | 44,000 | 2.4 | F687C3 |
| 8 | 16 | 4 | 18 | 1 | 0.2 | 1,610 | 715 | 35,000 | 41,000 | 3.5 | F688 |
| 8 | 16 | 4 | 18 | 1 | 0.2 | 1,610 | 715 | 35,000 | 41,000 | 3.5 | F688C3 |
| 9 | 17 | 4 | 19 | 1 | 0.2 | 1,720 | 820 | 33,000 | 39,000 | 3.6 | F689 |
| 9 | 17 | 4 | 19 | 1 | 0.2 | 1,720 | 820 | 33,000 | 39,000 | 3.6 | F689C3 |
| 9 | 17 | 5 | 19 | 1.1 | 0.2 | 1,720 | 820 | 33,000 | 39,000 | 3.6 | F689-Z |
| 9 | 17 | 5 | 19 | 1.1 | 0.2 | 1,720 | 820 | 33,000 | 39,000 | 3.6 | F689-ZZ |
| 8 | 16 | 5 | 18 | 1.1 | 0.2 | 1,610 | 715 | 35,000 | 41,000 | 3.5 | F688-Z |
| 8 | 16 | 5 | 18 | 1.1 | 0.2 | 1,610 | 715 | 35,000 | 41,000 | 3.5 | F688-ZZ |
| 7 | 14 | 5 | 16 | 1.1 | 0.15 | 1,170 | 505 | 37,000 | 44,000 | 2.4 | F687-Z |
| 7 | 14 | 5 | 16 | 1.1 | 0.15 | 1,170 | 505 | 37,000 | 44,000 | 2.4 | F687-ZZ |
| 6 | 13 | 5 | 15.2 | 1.1 | 0.15 | 1,080 | 440 | 39,000 | 46,000 | 2.2 | F686-Z |
| 6 | 13 | 5 | 15.2 | 1.1 | 0.15 | 1,080 | 440 | 39,000 | 46,000 | 2.2 | F686-ZZ |
| 5 | 11 | 5 | 12.5 | 1 | 0.15 | 715 | 282 | 43,000 | 51,000 | 1.3 | F685-Z |
| 5 | 11 | 5 | 12.5 | 1 | 0.15 | 715 | 282 | 43,000 | 51,000 | 1.3 | F685-ZZ |
| 4 | 9 | 4 | 10.3 | 1 | 0.15 | 640 | 224 | 49,000 | 57,000 | 0.76 | F684-Z |
| 4 | 9 | 4 | 10.3 | 1 | 0.15 | 640 | 224 | 49,000 | 57,000 | 0.76 | F684-ZZ |
| 3 | 7 | 3 | 8.1 | 0.8 | 0.1 | 390 | 130 | 58,000 | 68,000 | 0.38 | F683-Z |
| 3 | 7 | 3 | 8.1 | 0.8 | 0.1 | 390 | 130 | 58,000 | 68,000 | 0.38 | F683-ZZ |
| 2 | 5 | 2.3 | 6.1 | 0.6 | 0.08 | 171 | 51.0 | 74,000 | 87,000 | 0.17 | F682-Z |
| 2 | 5 | 2.3 | 6.1 | 0.6 | 0.08 | 171 | 51.0 | 74,000 | 87,000 | 0.17 | F682-ZZ |
| 1 | 3 | 1.5 | 3.8 | 0.45 | 0.05 | 80 | 22.0 | 120,000 | 140,000 | 0.06 | F681-Z |
| 1 | 3 | 1.5 | 3.8 | 0.45 | 0.05 | 80 | 22.0 | 120,000 | 140,000 | 0.06 | F681-ZZ |
| 2.5 | 6 | 2.6 | 7.1 | 0.8 | 0.08 | 209 | 73.0 | 65,000 | 76,000 | 0.26 | F68/2.5-Z |
| 2.5 | 6 | 2.6 | 7.1 | 0.8 | 0.08 | 209 | 73.0 | 65,000 | 76,000 | 0.26 | F68/2.5-ZZ |
| 1.5 | 4 | 2 | 5 | 0.6 | 0.15 | 102 | 29.0 | 88,000 | 100,000 | 0.09 | F68/1.5-Z |
| 1.5 | 4 | 2 | 5 | 0.6 | 0.15 | 102 | 29.0 | 88,000 | 100,000 | 0.09 | F68/1.5-ZZ |
