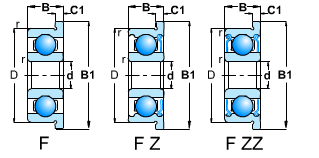

| Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | Bearing Number | |||||||
| d | D | B | D1 | C1 | rs min | Cr | Cor | Grease | Oil | (Approx.) | XLB |
| 1.5 | 5 | 2 | 6.5 | 0.6 | 0.15 | 171 | 51.0 | 79,000 | 93,000 | 0.24 | F69/1.5 |
| 1.5 | 5 | 2 | 6.5 | 0.6 | 0.15 | 171 | 51.0 | 79,000 | 93,000 | 0.24 | F69/1.5C3 |
| 2.5 | 7 | 2.5 | 8.5 | 0.7 | 0.15 | 284 | 96.0 | 59,000 | 70,000 | 0.53 | F69/2.5 |
| 2.5 | 7 | 2.5 | 8.5 | 0.7 | 0.15 | 284 | 96.0 | 59,000 | 70,000 | 0.53 | F69/2.5C3 |
| 1 | 4 | 1.6 | 5 | 0.5 | 0.1 | 157 | 43.0 | 96,000 | 110,000 | 0.14 | F691 |
| 1 | 4 | 1.6 | 5 | 0.5 | 0.1 | 157 | 43.0 | 96,000 | 110,000 | 0.14 | F691C3 |
| 2 | 6 | 2.3 | 7.5 | 0.6 | 0.15 | 279 | 89.0 | 67,000 | 79,000 | 0.38 | F692 |
| 2 | 6 | 2.3 | 7.5 | 0.6 | 0.15 | 279 | 89.0 | 67,000 | 79,000 | 0.38 | F692C3 |
| 3 | 8 | 3 | 9.5 | 0.7 | 0.15 | 560 | 180 | 54,000 | 63,000 | 0.72 | F693 |
| 3 | 8 | 3 | 9.5 | 0.7 | 0.15 | 560 | 180 | 54,000 | 63,000 | 0.72 | F693C3 |
| 4 | 11 | 4 | 12.5 | 1 | 0.15 | 715 | 276 | 45,000 | 52,000 | 2 | F694 |
| 4 | 11 | 4 | 12.5 | 1 | 0.15 | 715 | 276 | 45,000 | 52,000 | 2 | F694C3 |
| 5 | 13 | 4 | 15 | 1 | 0.2 | 1,080 | 430 | 40,000 | 47,000 | 2.7 | F695 |
| 5 | 13 | 4 | 15 | 1 | 0.2 | 1,080 | 430 | 40,000 | 47,000 | 2.7 | F695C3 |
| 6 | 15 | 5 | 17 | 1.2 | 0.2 | 1,350 | 530 | 37,000 | 44,000 | 4.3 | F696 |
| 6 | 15 | 5 | 17 | 1.2 | 0.2 | 1,350 | 530 | 37,000 | 44,000 | 4.3 | F696C3 |
| 7 | 17 | 5 | 19 | 1.2 | 0.3 | 1,610 | 715 | 35,000 | 41,000 | 5.7 | F697 |
| 7 | 17 | 5 | 19 | 1.2 | 0.3 | 1,610 | 715 | 35,000 | 41,000 | 5.7 | F697C3 |
| 8 | 19 | 6 | 22 | 1.5 | 0.3 | 1,990 | 865 | 33,000 | 39,000 | 8.4 | F698 |
| 8 | 19 | 6 | 22 | 1.5 | 0.3 | 1,990 | 865 | 33,000 | 39,000 | 8.4 | F698C3 |
| 8 | 19 | 6 | 22 | 1.50 | 0.3 | 1,990 | 865 | 33,000 | 39,000 | 8.4 | F698-Z |
| 8 | 19 | 6 | 22 | 1.50 | 0.3 | 1,990 | 865 | 33,000 | 39,000 | 8.4 | F698-ZZ |
| 7 | 17 | 5 | 19 | 1.2 | 0.3 | 1,610 | 715 | 35,000 | 41,000 | 5.7 | F697-Z |
| 7 | 17 | 5 | 19 | 1.2 | 0.3 | 1,610 | 715 | 35,000 | 41,000 | 5.7 | F697-ZZ |
| 6 | 15 | 5 | 17 | 1.2 | 0.2 | 1,350 | 530 | 37,000 | 44,000 | 4.3 | F696-Z |
| 6 | 15 | 5 | 17 | 1.2 | 0.2 | 1,350 | 530 | 37,000 | 44,000 | 4.3 | F696-ZZ |
| 5 | 13 | 4 | 15.2 | 1 | 0.2 | 1,080 | 430 | 40,000 | 47,000 | 2.7 | F695-Z |
| 5 | 13 | 4 | 15.2 | 1 | 0.2 | 1,080 | 430 | 40,000 | 47,000 | 2.7 | F695-ZZ |
| 4 | 11 | 4 | 12.5 | 1 | 0.15 | 715 | 276 | 45,000 | 52,000 | 2 | F694-Z |
| 4 | 11 | 4 | 12.5 | 1 | 0.15 | 715 | 276 | 45,000 | 52,000 | 2 | F694-ZZ |
| 3 | 8 | 4 | 9.5 | 0.9 | 0.15 | 560 | 180 | 54,000 | 63,000 | 0.72 | F693-Z |
| 3 | 8 | 4 | 9.5 | 0.9 | 0.15 | 560 | 180 | 54,000 | 63,000 | 0.72 | F693-ZZ |
| 2 | 6 | 3 | 7.5 | 0.8 | 0.15 | 279 | 89.0 | 67,000 | 79,000 | 0.38 | F692-Z |
| 2 | 6 | 3 | 7.5 | 0.8 | 0.15 | 279 | 89.0 | 67,000 | 79,000 | 0.38 | F692-ZZ |
| 1 | 4 | 2.3 | 5 | 0.6 | 0.1 | 157 | 43.0 | 96,000 | 110,000 | 0.14 | F691-Z |
| 1 | 4 | 2.3 | 5 | 0.6 | 0.1 | 157 | 43.0 | 96,000 | 110,000 | 0.14 | F691-ZZ |
| 2.5 | 7 | 3.5 | 8.5 | 0.9 | 0.15 | 284 | 96.0 | 59,000 | 70,000 | 0.53 | F69/2.5-Z |
| 2.5 | 7 | 3.5 | 8.5 | 0.9 | 0.15 | 284 | 96.0 | 59,000 | 70,000 | 0.53 | F69/2.5-ZZ |
| 1.5 | 5 | 2.6 | 6.5 | 0.8 | 0.15 | 171 | 51.0 | 79,000 | 93,000 | 0.24 | F69/1.5-Z |
| 1.5 | 5 | 2.6 | 6.5 | 0.8 | 0.15 | 171 | 51.0 | 79,000 | 93,000 | 0.24 | F69/1.5-ZZ |
