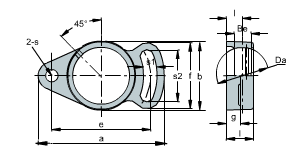

| Boundary dimensions(mm) | Mass | Bearing Number | ||||||||
| Da | a | e | g | l | s | s1 | b | f | Kg | XLB |
| 47 | 98 | 78 | 12 | 25.5 | 10 | 40 | 60 | 50 | 0.6 | FA204 |
| 52 | 124 | 96 | 14 | 26.5 | 13 | 49 | 70 | 64 | 0.8 | FA205 |
| 62 | 141 | 115 | 14 | 31 | 13 | 53 | 80 | 68 | 1.2 | FA206 |
| 72 | 155 | 128 | 16 | 34 | 15 | 60 | 90 | 75 | 1.5 | FA207 |
| 80 | 171 | 142 | 16 | 36 | 15 | 69 | 100 | 84 | 1.8 | FA208 |
| 85 | 179 | 146 | 18 | 38 | 17 | 72 | 110 | 88 | 2.2 | FA209 |
| 90 | 189 | 155 | 18 | 40 | 17 | 75 | 115 | 92 | 2.6 | FA210 |
