Bearings

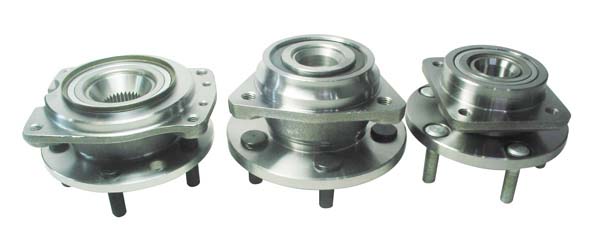

Automotive Bearings >>
Truck and Trailer Parts
| Dimensions(mm)(Quantity) | Flange shape | Item No. | |||||||||
| A | B | C | D | E | F | G | H | I | J | K | XLB |
| 146.5 | 115 | (5)M12x1.5 | 70.14 | 70.63 | 42.18 | 90.05 | 116 | (3)12.96 | 33 | Modified triangular | 513059 |
| 144.5 | 120.65 | (5)M12x1.5 | 70.14 | 70.63 | 47.26 | 81.5 | 120.65 | (3)M12x1.75 | 27 | Modified triangular | 513061 |
| 140 | 114.3 | (5)M12x1.5 | N/A | 73.32 | 37.5 | 87 | N/A | N/A | 26 | N/A | 513074 |
| 125 | 100 | (5)M12x1.5 | 57 | 58.33 | 43.18 | 78.5 | 98 | (3) 11 | 33 | Modified triangular | 513004 |
| 125 | 100 | (5)M12x1.5 | 57 | 57.77 | 42.18 | 71 | 102 | (3)12.96 | 33 | Modified triangular | 513011 |
| 144.5 | 120.65 | (5)M12x1.5 | 70.14 | 70.63 | 47.28 | 91.98 | 120.65 | (3) M12x1.75 | 27 | Modified triangular | 513013 |
| 147 | 115 | (5)M12x1.5 | 70.14 | 70.63 | 42.18 | 90.05 | 116 | (3)12.96 | 27 | Modified triangular | 513016 |
| 125 | 100 | (5)M12x1.5 | 57 | 58.33 | 44.43 | 73.5 | 98 | (3)12.96 | 33 | Modified triangular | 513017 |
| 177.8 | 139.7 | (6)M14x1.5 | N/A | 78.1 | 56.64 | 99.31 | 127 | (3)14.68 | 33 | Modified triangular | 515001 |
| 144 | 114.3 | (6)1/2-20UNF | 72 | 73 | 54 | 97 | -- | (4)1/2-20UNF | 31 | Rectangular | 513109 |
| 144.5 | 115 | (5)M12x1.5 | 70.14 | 70.63 | 45 | 91 | 146 | M10x1.5 / (4)11.25 | 33 | Rectangular | 513044 |
| 126 | 100 | (5)M12x1.5 | 56 | 56.8 | 37.4 | 86.2 | 112 | (4)M10x1.5 | 26 | Rectangular | 513075 |
| 144 | 114.3 | (5)1/2-20UNF | 71.43 | 73.32 | 57.6 | 86 | 114.3 | (4)14.56 | 26 | Rectangular | 513082 |
| 153.5 | 114.3 | (5)1/2-20UNF | 71.43 | 71.93 | 54.18 | 100.13 | 120.65 | (3)M12x1.75 | 26 | Triangular | 513084 |
| 145.5 | 115 | (5)M12x1.5 | 70.14 | 70.63 | 42.18 | 91.34 | 116 | (3)12.96 | 33 | Triangular | 513087 |
| 145.5 | 114.3 | (5)M12x1.5 | 70.4 | 71.35 | 42.18 | 91.42 | 112 | (3)M12x1.75 | 33 | Triangular | 513089 |
| 139 | 108 | (5)M12x1.5 | 63.2 | 70.92 | 61.98 | 82.5 | 112 | (3)12 | 26 | Modified triangular | 513100 |
| 144 | 101 | (5)1/2-20UNF | 72 | N/A | 46 | 100 | 121 | (3)M12x1.75 | 27 | Modified triangular | 513107 |
| 182 | 139.7 | (6)M14x1.5 | N/A | 78.1 | 50.55 | 99.31 | 127 | (3)14.68 | 33 | Modified triangular | 515002 |
