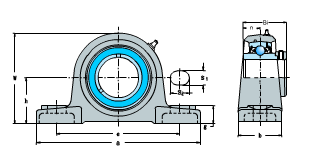

Shaft Dia		Boundary dimensions(mm)										Bolt Size	Bearing No.	Housing No.	Mass	Bearing Number
in.	mm	h	a	e	b	s1	s2	g	w	Bi	n	Bolt Size	Bearing No.	Housing No.	Kg	XLB
1/2		31.8	127	96	31	13	16	14	63	43.5	17	3/8	HC201-8	AK204	0.74	HCAK201-8
5/8		31.8	127	96	31	13	16	14	63	43.5	17	3/8	HC202-10	AK204	0.74	HCAK202-10
	20	31.8	127	96	31	13	16	14	63	43.5	17	M10	HC204	AK204	0.74	HCAK204
3/4		31.8	127	96	31	13	16	14	63	43.5	17	3/8	HC204-12	AK204	0.74	HCAK204-12
	25	33.3	140	105	38	13	19	15	66.5	44.3	17.4	M10	HC205	AK205	0.94	HCAK205
7/8		33.3	140	105	38	13	19	15	66.5	44.3	17.4	3/8	HC205-14	AK205	0.94	HCAK205-14
15/16		33.3	140	105	38	13	19	15	66.5	44.3	17.4	3/8	HC205-15	AK205	0.94	HCAK205-15
1		33.3	140	105	38	13	19	15	66.5	44.3	17.4	3/8	HC205-16	AK205	0.94	HCAK205-16
	30	36.7	160	121	44	14	19	16	79	48.3	18.2	M14	HC206	AK206	1.5	HCAK206
1-1/16		36.7	160	121	44	14	19	16	79	48.3	18.2	1/2	HC206-17	AK206	1.5	HCAK206-17
1-1/8		36.7	160	121	44	14	19	16	79	48.3	18.2	1/2	HC206-18	AK206	1.5	HCAK206-18
1-3/16		36.7	160	121	44	14	19	16	79	48.3	18.2	1/2	HC206-19	AK206	1.5	HCAK206-19
1-1/4		36.7	160	121	44	14	19	16	79	48.3	18.2	1/2	HC206-20	AK206	1.5	HCAK206-20
	35	46	167	127	48	15	19	17	91	51.1	18.8	M14	HC207	AK207	1.82	HCAK207
1-1/4		46	167	127	48	15	19	17	91	51.1	18.8	1/2	HC207-20	AK207	1.82	HCAK207-20
1-5/16		46	167	127	48	15	19	17	91	51.1	18.8	1/2	HC207-21	AK207	1.82	HCAK207-21
1-3/8		46	167	127	48	15	19	17	91	51.1	18.8	1/2	HC207-22	AK207	1.82	HCAK207-22
1-7/16		46	167	127	48	15	19	17	91	51.1	18.8	1/2	HC207-23	AK207	1.82	HCAK207-23
	40	49.2	180	136	52	15	21	18	98	56.3	21.4	M14	HC208	AK208	2.2	HCAK208
1-1/2		49.2	180	136	52	15	21	18	98	56.3	21.4	1/2	HC208-24	AK208	2.2	HCAK208-24

1-9/16		49.2	180	136	52	15	21	18	98	56.3	21.4	1/2	HC208-25	AK208	2.2	HCAK208-25
	45	52.4	189	146	54	15	21	20	105	56.3	21.4	M14	HC209	AK209	2.95	HCAK209
1-5/8		52.4	189	146	54	15	21	20	105	56.3	21.4	1/2	HC209-26	AK209	2.95	HCAK209-26
1-11/16		52.4	189	146	54	15	21	20	105	56.3	21.4	1/2	HC209-27	AK209	2.95	HCAK209-27
1-3/4		52.4	189	146	54	15	21	20	105	56.3	21.4	1/2	HC209-28	AK209	2.95	HCAK209-28
	50	55.6	204	159	57	19	22	21	111.5	62.7	24.6	M16	HC210	AK210	3.4	HCAK210
1-7/8		55.6	204	159	57	19	22	21	111.5	62.7	24.6	5/8	HC210-30	AK210	3.4	HCAK210-30
1-15/16		55.6	204	159	57	19	22	21	111.5	62.7	24.6	5/8	HC210-31	AK210	3.4	HCAK210-31
2		55.6	204	159	57	19	22	21	111.5	62.7	24.6	5/8	HC210-32	AK210	3.4	HCAK210-32
	55	61.9	217	172	60	19	22	22	123	71.4	27.7	M16	HC211	AK211	5.15	HCAK211
2		61.9	217	172	60	19	22	22	123	71.4	27.7	5/8	HC211-32	AK211	5.15	HCAK211-32
2-1/8		61.9	217	172	60	19	22	22	123	71.4	27.7	5/8	HC211-34	AK211	5.15	HCAK211-34
2-3/16		61.9	217	172	60	19	22	22	123	71.4	27.7	5/8	HC211-35	AK211	5.15	HCAK211-35
	60	68.3	238	186	66	19	25	24	136	77.7	30.9	M16	HC212	AK212	5.7	HCAK212
2-1/4		68.3	238	186	66	19	25	24	136	77.7	30.9	5/8	HC212-36	AK212	5.7	HCAK212-36
2-3/8		68.3	238	186	66	19	25	24	136	77.7	30.9	5/8	HC212-38	AK212	5.7	HCAK212-38
2-7/16		68.3	238	186	66	19	25	24	136	77.7	30.9	5/8	HC212-39	AK212	5.7	HCAK212-39
