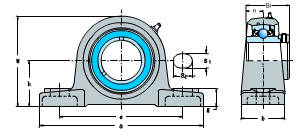

Shaft Dia		Boundary dimensions(mm)										Bolt Size	Bearing No.	Housing No.	Mass	Bearing Number
in.	mm	h	a	e	b	s1	s2	g	w	Bi	n	Bolt Size	Bearing No.	Housing No.	Kg	XLB
1/2		33.3	127	95	38	13	16	15	65	43.5	17	3/8	HC201-8	P204	0.85	HCP201-8
5/8		33.3	127	95	38	13	16	15	65	43.5	17	3/8	HC202-10	P204	0.85	HCP202-10
	20	33.3	127	95	38	13	16	15	65	43.5	17	M10	HC204	P204	0.85	HCP204
3/4		33.3	127	95	38	13	16	15	65	43.5	17	3/8	HC204-12	P204	0.85	HCP204-12
	25	36.6	140	105	38	13	16	16	70	44.3	17.4	M10	HC205	P205	1.06	HCP205
7/8		36.6	140	105	38	13	16	16	70	44.3	17.4	3/8	HC205-14	P205	1.06	HCP205-14
15/16		36.6	140	105	38	13	16	16	70	44.3	17.4	3/8	HC205-15	P205	1.06	HCP205-15
1		36.6	140	105	38	13	16	16	70	44.3	17.4	3/8	HC205-16	P205	1.06	HCP205-16
	30	42.9	165	121	48	17	21	18	83	48.3	18.2	M14	HC206	P206	1.7	HCP206
1-1/16		42.9	165	121	48	17	21	18	83	48.3	18.2	1/2	HC206-17	P206	1.7	HCP206-17
1-1/8		42.9	165	121	48	17	21	18	83	48.3	18.2	1/2	HC206-18	P206	1.7	HCP206-18
1-3/16		42.9	165	121	48	17	21	18	83	48.3	18.2	1/2	HC206-19	P206	1.7	HCP206-19
1-1/4		42.9	165	121	48	17	21	18	83	48.3	18.2	1/2	HC206-20	P206	1.7	HCP206-20
	35	47.6	167	127	48	17	21	19	94	51.1	18.8	M14	HC207	P207	2.25	HCP207
1-1/4		47.6	167	127	48	17	21	19	94	51.1	18.8	1/2	HC207-20	P207	2.25	HCP207-20
1-5/16		47.6	167	127	48	17	21	19	94	51.1	18.8	1/2	HC207-21	P207	2.25	HCP207-21
1-3/8		47.6	167	127	48	17	21	19	94	51.1	18.8	1/2	HC207-22	P207	2.25	HCP207-22
1-7/16		47.6	167	127	48	17	21	19	94	51.1	18.8	1/2	HC207-23	P207	2.25	HCP207-23
	40	49.2	184	137	54	17	25	19	100	56.3	21.4	M14	HC208	P208	2.8	HCP208
1-1/2		49.2	184	137	54	17	25	19	100	56.3	21.4	1/2	HC208-24	P208	2.8	HCP208-24

1-9/16		49.2	184	137	54	17	25	19	100	56.3	21.4	1/2	HC208-25	P208	2.8	HCP208-25
	45	54	190	146	54	17	25	20	108	56.3	21.4	M14	HC209	P209	3.15	HCP209
1-5/8		54	190	146	54	17	25	20	108	56.3	21.4	1/2	HC209-26	P209	3.15	HCP209-26
1-11/16		54	190	146	54	17	25	20	108	56.3	21.4	1/2	HC209-27	P209	3.15	HCP209-27
1-3/4		54	190	146	54	17	25	20	108	56.3	21.4	1/2	HC209-28	P209	3.15	HCP209-28
	50	57.2	206	159	60	20	25	22	114	62.7	24.6	M16	HC210	P210	3.8	HCP210
1-7/8		57.2	206	159	60	20	25	22	114	62.7	24.6	5/8	HC210-30	P210	3.8	HCP210-30
1-15/16		57.2	206	159	60	20	25	22	114	62.7	24.6	5/8	HC210-31	P210	3.8	HCP210-31
2		57.2	206	159	60	20	25	22	114	62.7	24.6	5/8	HC210-32	P210	3.8	HCP210-32
	55	63.5	219	171	60	20	25	22	126	71.4	27.7	M16	HC211	P211	4.7	HCP211
2		63.5	219	171	60	20	25	22	126	71.4	27.7	5/8	HC211-32	P211	4.7	HCP211-32
2-1/8		63.5	219	171	60	20	25	22	126	71.4	27.7	5/8	HC211-34	P211	4.7	HCP211-34
2-3/16		63.5	219	171	60	20	25	22	126	71.4	27.7	5/8	HC211-35	P211	4.7	HCP211-35
	60	69.8	241	184	70	20	25	25	138	77.7	30.9	M16	HC212	P212	6.6	HCP212
2-1/4		69.8	241	184	70	20	25	25	138	77.7	30.9	5/8	HC212-36	P212	6.6	HCP212-36
2-3/8		69.8	241	184	70	20	25	25	138	77.7	30.9	5/8	HC212-38	P212	6.6	HCP212-38
2-7/16		69.8	241	184	70	20	25	25	138	77.7	30.9	5/8	HC212-39	P212	6.6	HCP212-39
	65	76.2	265	203	70	25	29	27	150	85.7	34.1	M20	HC213	P213	7.5	HCP213
2-1/2		76.2	265	203	70	25	29	27	150	85.7	34.1	3/4	HC213-40	P213	7.5	HCP213-40
	70	79.4	266	210	72	25	31	27	156	85.7	34.1	M20	HC214	P214	8.0	HCP214

2-11/16		79.4	266	210	72	25	31	27	156	85.7	34.1	3/4	HC214-43	P214	8.0	HCP214-43
2-3/4		79.4	266	210	72	25	31	27	156	85.7	34.1	3/4	HC214-44	P214	8.0	HCP214-44
	75	82.6	275	217	74	25	31	28	163	92.1	37.3	M20	HC215	P215	9.0	HCP215
2-15/16		82.6	275	217	74	25	31	28	163	92.1	37.3	3/4	HC215-47	P215	9.0	HCP215-47
3		82.6	275	217	74	25	31	28	163	92.1	37.3	3/4	HC215-48	P215	9.0	HCP215-48
