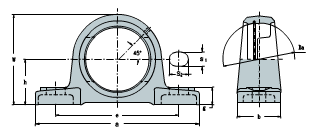

| Boundary dimensions(mm) | Mass | Bearing Number | ||||||||
| Da | h | a | e | b | S1 | S2 | g | w | Kg | XLB |
| 40 | 30.16 | 123.8 | 95 | 30.9 | 11 | 15 | 14 | 57.1 | 0.50 | PE203 |
| 47 | 33.3 | 127 | 95 | 38 | 13 | 16 | 15 | 65 | 0.65 | PE204 |
| 52 | 36.6 | 140 | 105 | 38 | 13 | 16 | 16 | 70 | 0.75 | PE205 |
| 62 | 42.9 | 165 | 121 | 48 | 17 | 21 | 18 | 83 | 1.15 | PE206 |
| 72 | 47.6 | 167 | 127 | 48 | 17 | 21 | 19 | 94 | 1.30 | PE207 |
| 80 | 49.2 | 184 | 137 | 54 | 17 | 25 | 19 | 100 | 1.50 | PE208 |
| 85 | 54.0 | 190 | 146 | 54 | 17 | 25 | 20 | 108 | 1.75 | PE209 |
| 90 | 57.2 | 206 | 159 | 60 | 20 | 25 | 22 | 114 | 2.35 | PE210 |
| 100 | 63.5 | 219 | 171 | 60 | 20 | 25 | 22 | 126 | 2.60 | PE211 |
| 110 | 69.8 | 241 | 184 | 70 | 20 | 25 | 25 | 138 | 4.00 | PE212 |
| 120 | 76.2 | 265 | 203 | 70 | 25 | 29 | 27 | 150 | 4.77 | PE213 |
| 125 | 79.4 | 266 | 210 | 72 | 25 | 31 | 27 | 156 | 5.30 | PE214 |
| 130 | 82.6 | 275 | 217 | 74 | 25 | 31 | 28 | 163 | 6.00 | PE215 |
