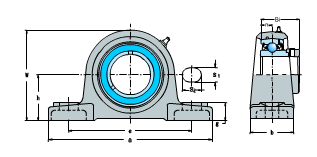

Shaft Dia		Boundary dimensions(mm)										Bolt Size	Bearing No.	Housing No.	Mass	Bearing Number
in.	mm	h	a	e	b	s1	s2	g	w	Bi	n	Bolt Size	Bearing No.	Housing No.	Kg	XLB
	20	31.8	127	96	31	13	16	14	63	31	7	M10	SA204	AK204	0.5	SAAK204
3/4		31.8	127	96	31	13	16	14	63	31	7	3/8	SA204-12	AK204	0.5	SAAK204-12
	25	33.3	140	105	38	13	19	15	66.5	31	7.5	M10	SA205	AK205	0.7	SAAK205
7/8		33.3	140	105	38	13	19	15	66.5	31	7.5	3/8	SA205-14	AK205	0.7	SAAK205-14
15/16		33.3	140	105	38	13	19	15	66.5	31	7.5	3/8	SA205-15	AK205	0.7	SAAK205-15
1		33.3	140	105	38	13	19	15	66.5	31	7.5	3/8	SA205-16	AK205	0.7	SAAK205-16
	30	36.7	160	121	44	14	19	16	79	35.7	8	M14	SA206	AK206	1.2	SAAK206
1-1/16		36.7	160	121	44	14	19	16	79	35.7	8	1/2	SA206-17	AK206	1.2	SAAK206-17
1-1/8		36.7	160	121	44	14	19	16	79	35.7	8	1/2	SA206-18	AK206	1.2	SAAK206-18
1-3/16		36.7	160	121	44	14	19	16	79	35.7	8	1/2	SA206-19	AK206	1.2	SAAK206-19
1-1/4		36.7	160	121	44	14	19	16	79	35.7	8	1/2	SA206-20	AK206	1.2	SAAK206-20
	35	46	167	127	48	15	19	17	91	38.9	8.5	M14	SA207	AK207	1.4	SAAK207
1-1/4		46	167	127	48	15	19	17	91	38.9	8.5	1/2	SA207-20	AK207	1.4	SAAK207-20
1-5/16		46	167	127	48	15	19	17	91	38.9	8.5	1/2	SA207-21	AK207	1.4	SAAK207-21
1-3/8		46	167	127	48	15	19	17	91	38.9	8.5	1/2	SA207-22	AK207	1.4	SAAK207-22
1-7/16		46	167	127	48	15	19	17	91	38.9	8.5	1/2	SA207-23	AK207	1.4	SAAK207-23
	40	49.2	180	136	52	15	21	18	98	43.7	9	M14	SA208	AK208	1.9	SAAK208
1-1/2		49.2	180	136	52	15	21	18	98	43.7	9	1/2	SA208-24	AK208	1.9	SAAK208-24
1-9/16		49.2	180	136	52	15	21	18	98	43.7	9	1/2	SA208-25	AK208	1.9	SAAK208-25
	45	52.4	189	146	54	15	21	20	105	43.7	9.5	M14	SA209	AK209	2.1	SAAK209

1-5/8		52.4	189	146	54	15	21	20	105	43.7	9.5	1/2	SA209-26	AK209	2.1	SAAK209-26
1-11/16		52.4	189	146	54	15	21	20	105	43.7	9.5	1/2	SA209-27	AK209	2.1	SAAK209-27
1-3/4		52.4	189	146	54	15	21	20	105	43.7	9.5	1/2	SA209-28	AK209	2.1	SAAK209-28
	50	55.6	204	159	57	19	22	21	111.5	43.7	10	M16	SA210	AK210	2.3	SAAK210
1-7/8		55.6	204	159	57	19	22	21	111.5	43.7	10	5/8	SA210-30	AK210	2.3	SAAK210-30
1-15/16		55.6	204	159	57	19	22	21	111.5	43.7	10	5/8	SA210-31	AK210	2.3	SAAK210-31
2		55.6	204	159	57	19	22	21	111.5	43.7	10	5/8	SA210-32	AK210	2.3	SAAK210-32
