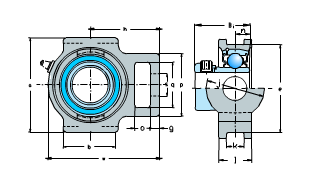

Shaft Dia		Boundary dimensions(mm)																Bearing No.	Housing No.	Mass	Bearing Number
in.	mm	o	g	p	q	s	b	k	e	a	w	l	j	r	h	Bi	n	Bearing No.	Housing No.	Kg	XLB
1/2		16	10	51	32	19	51	12	76.2	89	94	21	32	33	61	31	7	SA201-8	T204	0.77	SAT201-8
5/8		16	10	51	32	19	51	12	76.2	89	94	21	32	33	61	31	7	SA202-10	T204	0.77	SAT202-10
	20	16	10	51	32	19	51	12	76.2	89	94	21	32	33	61	31	7	SA204	T204	0.77	SAT204
3/4		16	10	51	32	19	51	12	76.2	89	94	21	32	33	61	31	7	SA204-12	T204	0.77	SAT204-12
	25	16	10	51	32	19	51	12	76.2	89	97	24	32	35	62	31	7.5	SA205	T205	0.86	SAT205
7/8		16	10	51	32	19	51	12	76.2	89	97	24	32	35	62	31	7.5	SA205-14	T205	0.86	SAT205-14
15/16		16	10	51	32	19	51	12	76.2	89	97	24	32	35	62	31	7.5	SA205-15	T205	0.86	SAT205-15
1		16	10	51	32	19	51	12	76.2	89	97	24	32	35	62	31	7.5	SA205-16	T205	0.86	SAT205-16
	30	16	10	56	37	22	57	12	89	102	113	28	37	43	70	35.7	8	SA206	T206	1.32	SAT206
1-1/16		16	10	56	37	22	57	12	89	102	113	28	37	43	70	35.7	8	SA206-17	T206	1.32	SAT206-17
1-1/8		16	10	56	37	22	57	12	89	102	113	28	37	43	70	35.7	8	SA206-18	T206	1.32	SAT206-18
1-3/16		16	10	56	37	22	57	12	89	102	113	28	37	43	70	35.7	8	SA206-19	T206	1.32	SAT206-19
1-1/4		16	10	56	37	22	57	12	89	102	113	28	37	43	70	35.7	8	SA206-20	T206	1.32	SAT206-20
	35	16	13	64	37	22	64	12	89	102	129	30	37	51	78	38.9	8.5	SA207	T207	1.59	SAT207
1-1/4		16	13	64	37	22	64	12	89	102	129	30	37	51	78	38.9	8.5	SA207-20	T207	1.59	SAT207-20
1-5/16		16	13	64	37	22	64	12	89	102	129	30	37	51	78	38.9	8.5	SA207-21	T207	1.59	SAT207-21
1-3/8		16	13	64	37	22	64	12	89	102	129	30	37	51	78	38.9	8.5	SA207-22	T207	1.59	SAT207-22
1-7/16		16	13	64	37	22	64	12	89	102	129	30	37	51	78	38.9	8.5	SA207-23	T207	1.59	SAT207-23
	40	19	16	83	49	29	83	16	102	114	144	33	49	56	88	43.7	9	SA208	T208	2.30	SAT208
1-1/2		19	16	83	49	29	83	16	102	114	144	33	49	56	88	43.7	9	SA208-24	T208	2.30	SAT208-24

1-9/16		19	16	83	49	29	83	16	102	114	144	33	49	56	88	43.7	9	SA208-25	T208	2.30	SAT208-25
	45	19	16	83	49	29	83	16	102	117	145	35	49	57	88	43.7	9.5	SA209	T209	2.50	SAT209
1-5/8		19	16	83	49	29	83	16	102	117	145	35	49	57	88	43.7	9.5	SA209-26	T209	2.50	SAT209-26
1-11/16		19	16	83	49	29	83	16	102	117	145	35	49	57	88	43.7	9.5	SA209-27	T209	2.50	SAT209-27
1-3/4		19	16	83	49	29	83	16	102	117	145	35	49	57	88	43.7	9.5	SA209-28	T209	2.50	SAT209-28
	50	19	16	83	49	29	86	16	102	117	151	37	49	59	92	43.7	10	SA210	T210	2.60	SAT210
1-7/8		19	16	83	49	29	86	16	102	117	151	37	49	59	92	43.7	10	SA210-30	T210	2.60	SAT210-30
1-15/16		19	16	83	49	29	86	16	102	117	151	37	49	59	92	43.7	10	SA210-31	T210	2.60	SAT210-31
2		19	16	83	49	29	86	16	102	117	151	37	49	59	92	43.7	10	SA210-32	T210	2.60	SAT210-32
