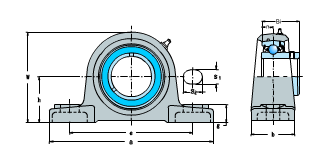

Shaft Dia		Boundary dimensions(mm)										Bolt Size	Bearing No.	Housing No.	Mass	Bearing Number
in.	mm	h	a	e	b	s1	s2	g	w	Bi	n	Bolt Size	Bearing No.	Housing No.	Kg	XLB
	20	31.8	127	96	31	13	16	14	63	25	7	M10	SB204	AK204	0.41	SBAK204
3/4		31.8	127	96	31	13	16	14	63	25	7	3/8	SB204-12	AK204	0.41	SBAK204-12
	25	33.3	140	105	38	13	19	15	66.5	27	7.5	M10	SB205	AK205	0.62	SBAK205
7/8		33.3	140	105	38	13	19	15	66.5	27	7.5	3/8	SB205-14	AK205	0.62	SBAK205-14
15/16		33.3	140	105	38	13	19	15	66.5	27	7.5	3/8	SB205-15	AK205	0.62	SBAK205-15
1		33.3	140	105	38	13	19	15	66.5	27	7.5	3/8	SB205-16	AK205	0.62	SBAK205-16
	30	36.7	160	121	44	14	19	16	79	30	8	M14	SB206	AK206	0.98	SBAK206
1-1/16		36.7	160	121	44	14	19	16	79	30	8	1/2	SB206-17	AK206	0.98	SBAK206-17
1-1/8		36.7	160	121	44	14	19	16	79	30	8	1/2	SB206-18	AK206	0.98	SBAK206-18
1-3/16		36.7	160	121	44	14	19	16	79	30	8	1/2	SB206-19	AK206	0.98	SBAK206-19
1-1/4		36.7	160	121	44	14	19	16	79	30	8	1/2	SB206-20	AK206	0.98	SBAK206-20
	35	46	167	127	48	15	19	17	91	32	8.5	M14	SB207	AK207	1.2	SBAK207
1-1/4		46	167	127	48	15	19	17	91	32	8.5	1/2	SB207-20	AK207	1.2	SBAK207-20
1-5/16		46	167	127	48	15	19	17	91	32	8.5	1/2	SB207-21	AK207	1.2	SBAK207-21
1-3/8		46	167	127	48	15	19	17	91	32	8.5	1/2	SB207-22	AK207	1.2	SBAK207-22
1-7/16		46	167	127	48	15	19	17	91	32	8.5	1/2	SB207-23	AK207	1.2	SBAK207-23
	40	49.2	180	136	52	15	21	18	98	34	9	M14	SB208	AK208	1.7	SBAK208
1-1/2		49.2	180	136	52	15	21	18	98	34	9	1/2	SB208-24	AK208	1.7	SBAK208-24
1-9/16		49.2	180	136	52	15	21	18	98	34	9	1/2	SB208-25	AK208	1.7	SBAK208-25
