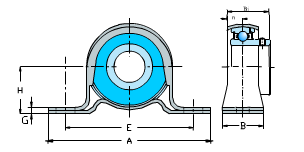

Shaft Dia		Boundary dimensions(mm)										Bearing No.	Housing No.	Mass	Bearing Number
in.	mm	h	a	e	b	S1	S2	w	g	Bi	n	Bearing No.	Housing No.	Kg	XLB
1/2		22.22	92	68	25	9	13	44	4	22	6.0	SB201-8	PP203ST	0.17	SBPP201-8
5/8		22.22	92	68	25	9	13	44	4	22	6.0	SB202-10	PP203ST	0.17	SBPP202-10
	20	25.40	105	76	25	10	13	53	4	25	7.0	SB204	PP204ST	0.22	SBPP204
3/4		25.40	105	76	25	10	13	53	4	25	7.0	SB204-12	PP204ST	0.22	SBPP204-12
	25	28.58	109	86	29	10	14	56	5	27	7.5	SB205	PP205ST	031	SBPP205
7/8		28.58	109	86	29	10	14	56	5	27	7.5	SB205-14	PP205ST	031	SBPP205-14
15/16		28.58	109	86	29	10	14	56	5	27	7.5	SB205-15	PP205ST	031	SBPP205-15
1		28.58	109	86	29	10	14	56	5	27	7.5	SB205-16	PP205ST	031	SBPP205-16
	30	33.34	124	95	32	10	14	67	6	30	8.0	SB206	PP206ST	0.47	SBPP206
1-1/16		33.34	124	95	32	10	14	67	6	30	8.0	SB206-17	PP206ST	0.47	SBPP206-17
1-1/8		33.34	124	95	32	10	14	67	6	30	8.0	SB206-18	PP206ST	0.47	SBPP206-18
1-3/16		33.34	124	95	32	10	14	67	6	30	8.0	SB206-19	PP206ST	0.47	SBPP206-19
1-1/4		33.34	124	95	32	10	14	67	6	30	8.0	SB206-20	PP206ST	0.47	SBPP206-20
	35	39.69	146	108	33	13	19	79	6	32	8.5	SB207	PP207ST	0.73	SBPP207
1-1/4		39.69	146	108	33	13	19	79	6	32	8.5	SB207-20	PP207ST	0.73	SBPP207-20
1-5/16		39.69	146	108	33	13	19	79	6	32	8.5	SB207-21	PP207ST	0.73	SBPP207-21
1-3/8		39.69	146	108	33	13	19	79	6	32	8.5	SB207-22	PP207ST	0.73	SBPP207-22
1-7/16		39.69	146	108	33	13	19	79	6	32	8.5	SB207-23	PP207ST	0.73	SBPP207-23
