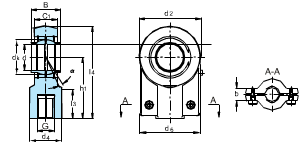

| Boundary dimensions(mm) | Mass | Bearing Number | |||||||||||||
| d | B | dk | C1 max | d2 max | G 6H | h1 | l3 min | l4 max | d4 max | d6 max | b | rs min | α° ≈ | Kg ≈ | XLB |
| 12 | 12 | 18 | 10.5 | 32 | M12×1.25 | 38 | 17 | 54 | 16 | 32 | 12 | 0.3 | 4 | 0.11 | SIGEW12ES |
| 16 | 16 | 23 | 13 | 40 | M14×1.5 | 44 | 19 | 64 | 21 | 40 | 12 | 0.3 | 4 | 0.21 | SIGEW16ES |
| 20 | 20 | 29 | 17 | 47 | M16×1.5 | 52 | 23 | 75.5 | 25 | 47 | 14 | 0.3 | 4 | 0.4 | SIGEW20ES |
| 25 | 25 | 35.5 | 21 | 58 | M20×1.5 | 65 | 29 | 94 | 30 | 54 | 17 | 0.6 | 4 | 0.66 | SIGEW25ES |
| 32 | 32 | 43 | 27 | 70 | M27×2 | 80 | 37 | 115 | 38 | 66 | 22 | 0.6 | 4 | 1.2 | SIGEW32ES |
| 40 | 40 | 53 | 32 | 89 | M33×2 | 97 | 46 | 141.5 | 47 | 80 | 26 | 0.6 | 4 | 2.1 | SIGEW40ES |
| 50 | 50 | 66 | 40 | 108 | M42×2 | 120 | 57 | 174 | 58 | 96 | 32 | 0.6 | 4 | 4.5 | SIGEW50ES |
| 63 | 63 | 83 | 52 | 132 | M48×2 | 140 | 64 | 206 | 70 | 114 | 38 | 1 | 4 | 7.6 | SIGEW63ES |
| 80 | 80 | 105 | 66 | 168 | M64×3 | 180 | 86 | 264 | 90 | 148 | 48 | 1 | 4 | 14 | SIGEW80ES |
| 100 | 100 | 130 | 84 | 210 | M80×3 | 210 | 96 | 315 | 110 | 178 | 62 | 1 | 4 | 28 | SIGEW100ES |
