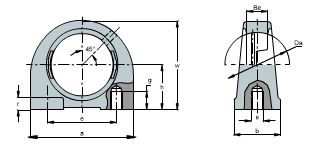

| Boundary dimensions(mm) | Mass | Bearing Number | |||||||
| Da | h | a | e | b | S | r | w | Kg | XLB |
| 47 | 33.3 | 73 | 50.8 | 38.1 | 3/8-16 | 12.7 | 65.1 | 0.42 | TB204 |
| 52 | 36.5 | 76.2 | 50.8 | 38.1 | 3/8-16 | 12.7 | 71.4 | 0.50 | TB205 |
| 62 | 42.9 | 101.6 | 76.2 | 38.1 | 7/16-14 | 16 | 85.7 | 0.97 | TB206 |
| 72 | 47.6 | 107.9 | 82.5 | 47.6 | 1/2-13 | 19 | 95.3 | 1.33 | TB207 |
| 80 | 49.2 | 117.5 | 88.9 | 47.6 | 1/2-13 | 19 | 100.0 | 1.62 | TB208 |
| 85 | 54.0 | 127.0 | 95.3 | 50.8 | 1/2-13 | 19 | 107.9 | 1.80 | TB209 |
| 90 | 57.1 | 139.7 | 101.6 | 50.8 | 5/8-11 | 22 | 117.5 | 2.30 | TB210 |
