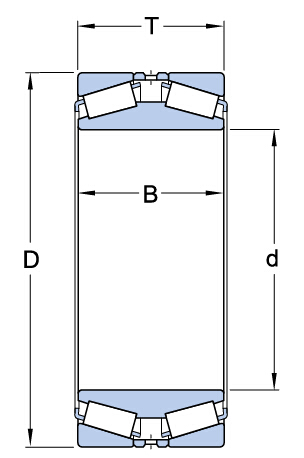

| Boundary dimensions(mm) | Basic load ratings(kN) | Mass(Kg) | SPACER | Cone / Cup | ||||
| d | D | T | B | C1 | (Approx.) | |||
| 30.162 | 62.000 | 33.797 | 34.925 | 70 | 0.44 | Y3S-17244 | 17116D-17244 | |
| 36.512 | 72.000 | 39.096 | 38.100 | 82 | 0.69 | Y1S-19283 | 19145D-19283 | |
| 42.862 | 85.000 | 50.267 | 52.375 | 131 | 1.2 | Y5S-354A | 358D-354A | |
| 44.450 | 80.962 | 34.926 | 31.750 | 82 | 0.72 | Y1S-13318 | 13176D-13318 | |
| 50.800 | 93.264 | 50.013 | 53.188 | 141 | 1.30 | Y1S-374 | 375D-374 | |
| 54.988 | 140.030 | 66.091 | 65.989 | 275 | 5.18 | Y1S-78551 | 78216D-78551 | |
| 61.912 | 110.000 | 55.550 | 55.550 | 159 | 1.97 | Y1S-394A | 399D-394A | |
| 63.500 | 112.712 | 60.325 | 60.325 | 269 | 2.55 | Y8S-39520 | 39585D-39520 | |
| 63.500 | 140.030 | 66.091 | 65.989 | 275 | 4.72 | Y1S-78551 | 78251D-78551 | |
| 64.988 | 140.030 | 66.091 | 65.989 | 275 | 4.71 | Y1S-78551 | 78255D-78551 | |
| 76.200 | 115.888 | 53.975 | 53.975 | 200 | 1.99 | LM114811EB | LM114848D-LM114811 | |
| 80.962 | 136.525 | 60.325 | 59.538 | 248 | 3.42 | Y4S-493 | 496D-493 | |
| 80.962 | 139.992 | 80.963 | 80.134 | 332 | 5.12 | Y1S-572 | 581D-572 | |
| 85.725 | 123.825 | 41.278 | 44.450 | 149 | 1.72 | L217810EA | L217845D-L217810 | |
| 88.900 | 161.925 | 101.549 | 107.950 | 527 | 8.56 | Y7S-752 | 767D-752 | |
| 92.075 | 148.430 | 57.150 | 57.942 | 262 | 3.81 | Y1S-42584 | 42362D-42584 | |
| 95.250 | 136.525 | 57.150 | 57.150 | 224 | 2.68 | LM119311EA | LM119348D-LM119311 | |
| 101.600 | 190.500 | 117.475 | 127.000 | 738 | 14.20 | Y5S-854 | 868D-854 | |
| 107.950 | 152.400 | 65.088 | 65.088 | 287 | 3.80 | LM121911EA | LM121948D-LM121911 | |
| 107.950 | 190.500 | 98.425 | 101.600 | 586 | 11.80 | Y7S-71750 | 71426D-71750 | |
| 107.950 | 212.725 | 142.875 | 152.400 | 922 | 21.80 | Y5S-932 | 946D-932 | |
| 114.300 | 190.500 | 98.425 | 101.600 | 586 | 10.80 | Y7S-71750 | 71450D-71750 | |
| 120.650 | 166.688 | 72.238 | 72.238 | 336 | 5.01 | LM124410EB | LM124449D-LM124410 | |
| 120.650 | 174.625 | 66.678 | 68.262 | 393 | 5.90 | M224710EA | M224749D-M224710 | |
| 127.000 | 182.562 | 76.200 | 76.200 | 431 | 6.65 | Y1S-48220 | 48290DW-48220 | |
| 130.005 | 215.900 | 123.825 | 123.825 | 616 | 16.70 | Y1S-74850 | 74510D-74850 | |
| 133.350 | 196.850 | 92.075 | 92.075 | 591 | 9.78 | Y1S-67332 | 67390D-67322 | |
| 136.525 | 190.500 | 77.788 | 77.788 | 456 | 6.85 | Y3S-48320 | 48393D-48320 | |
| 136.525 | 225.425 | 120.650 | 120.650 | 1040 | 20.40 | H228610EA | H228649D-H228610 | |
| 139.700 | 200.025 | 77.787 | 75.048 | 461 | 8.12 | Y1S-48620 | 48680D-48620 | |
| 139.700 | 215.900 | 95.250 | 106.362 | 581 | 12.40 | Y4S-74850 | 74555D-74850 | |
| 152.400 | 222.250 | 84.138 | 84.138 | 607 | 11.20 | M231610EA | M231649D-M231610 | |
| 152.400 | 307.975 | 161.924 | 171.450 | 1500 | 55.80 | Y5S-451212 | 450900D-451212 | |
| 165.100 | 225.425 | 79.376 | 79.375 | 489 | 9.46 | Y1S-46720 | 46791DW-46720 | |
| 177.800 | 247.650 | 90.488 | 90.488 | 652 | 13.20 | Y2S-67720 | 67790D-67720 | |
| 177.800 | 279.400 | 112.710 | 112.712 | 912 | 26.00 | Y1S-82620 | 82681D-82620 | |
| 177.800 | 288.925 | 123.825 | 123.825 | 1060 | 30.80 | Y7S-94113 | 94706D-94113 | |
| 177.800 | 288.925 | 123.825 | 123.825 | 1320 | 31.80 | HM237510EA | HM237546D-HM237510 | |
| 177.800 | 304.800 | 109.438 | 114.300 | 1020 | 32.70 | Y1S-281200 | EE280700D-281200 | |
| 187.325 | 269.875 | 101.600 | 101.600 | 884 | 19.20 | M238810EA | M238849D-M238810 | |
| 187.325 | 319.964 | 168.276 | 161.925 | 1790 | 53.70 | H239610EA | H239649D-H239610 | |
| 190.500 | 266.700 | 90.487 | 89.695 | 672 | 15.40 | Y1S-67820 | 67885DW-67820 | |
| 190.500 | 365.049 | 158.750 | 152.400 | 1880 | 75.30 | Y1S-421437 | EE420750D-421437 | |
| 203.200 | 317.500 | 123.825 | 123.825 | 1170 | 36.60 | Y11S-93125 | 93800D-93125 | |
| 203.200 | 365.049 | 158.750 | 152.400 | 1880 | 69.40 | Y1S-421437 | EE420800D-421437 | |
| 206.375 | 336.550 | 180.976 | 184.150 | 2170 | 65.50 | H242610EA | H242649D-H242610 | |
| 215.900 | 285.750 | 85.725 | 85.725 | 692 | 15.30 | LM742710EB | LM742749DW-LM742710 | |
| 219.075 | 358.775 | 196.850 | 200.025 | 2470 | 84.30 | H244810EA | H244849D-H244810 | |
| 220.662 | 314.325 | 115.886 | 115.888 | 1180 | 29.60 | M244210EA | M244249DW-M244210 | |
| 228.600 | 311.150 | 95.250 | 95.250 | 919 | 20.60 | LM245110EA | LM245149DW-LM245110 | |
| 228.600 | 400.050 | 139.700 | 139.700 | 1890 | 74.70 | Y1S-529157 | EE529091D-529157 | |
| 241.300 | 419.100 | 177.800 | 174.625 | 2590 | 99.50 | Y1S-821165 | EE821096D-821165 | |
| 241.478 | 349.148 | 107.950 | 107.950 | 1120 | 33.70 | Y1S-127135 | EE127097DW-127135 | |
| 244.475 | 327.025 | 92.075 | 92.075 | 967 | 21.70 | LM247710EA | LM247748D-LM247710 | |
| 244.475 | 381.000 | 146.050 | 146.050 | 1540 | 59.80 | Y1S-126150 | EE126096D-126150 | |
| 247.650 | 406.400 | 215.900 | 219.075 | 3360 | 117.00 | HH249910EA | HH249949D-HH249910 | |
| 254.000 | 358.775 | 130.175 | 130.175 | 1550 | 42.00 | M249710EA | M249748D-M249710 | |
| 254.000 | 368.300 | 92.710 | 92.862 | 955 | 31.10 | Y2S-171450 | EE171000D-171450 | |
| 260.350 | 400.050 | 119.060 | 114.300 | 1410 | 52.50 | Y1S-221575 | EE221025D-221575 | |
| 260.350 | 406.400 | 155.575 | 152.400 | 2000 | 74.90 | Y1S-324160 | EE324103D-324160 | |
| 266.700 | 355.600 | 107.950 | 109.538 | 1190 | 29.40 | LM451310EA | LM451349DW-LM451310 | |
| 269.875 | 381.000 | 136.525 | 136.525 | 1700 | 50.30 | M252310EA | M252349D-M252310 | |
| 276.225 | 393.700 | 130.175 | 130.175 | 1500 | 50.40 | Y1S-275155 | EE275109DW-275155 | |
| 279.400 | 393.700 | 127.000 | 127.000 | 1490 | 45.70 | Y1S-135155 | EE135111DW-135155 | |
| 279.400 | 457.200 | 244.475 | 244.475 | 4210 | 165.00 | HH255110EA | HH255149D-HH255110 | |
| 285.750 | 380.898 | 117.475 | 117.475 | 1230 | 38.70 | LM654610EA | LM654648DW-LM654610 | |
| 288.925 | 406.400 | 144.463 | 144.462 | 2030 | 59.50 | M255410EA | M25544D-M255410 | |
| 300.038 | 422.275 | 150.813 | 150.812 | 2210 | 67.60 | HM256810EA | HM256849D-HM256810 | |
| 304.648 | 438.048 | 131.762 | 131.762 | 1840 | 63.40 | Y1S-329172 | EE329119D-329172 | |
| 304.800 | 419.100 | 130.175 | 130.175 | 1770 | 51.70 | M257110EA | M257149DW-M257110 | |
| 304.800 | 444.500 | 111.126 | 107.950 | 1310 | 54.40 | Y3S-291750 | EE291200D-291750 | |
| 304.800 | 501.650 | 161.922 | 161.925 | 3060 | 126.00 | HM258910EA | HM258949D-HM258910 | |
| 304.902 | 412.648 | 128.588 | 128.588 | 1650 | 50.30 | M257210EA | M257248DW-M257210 | |
| 305.000 | 438.048 | 138.112 | 134.145 | 1880 | 63.50 | M757410EA | M757449DW-M757410 | |
| 317.500 | 422.275 | 128.587 | 128.588 | 1680 | 48.90 | LM258610EA | LM258648DW-LM258610 | |
| 317.500 | 447.675 | 158.750 | 158.750 | 2290 | 80.70 | HM259010EA | HM259049D-HM259010 | |
| 330.200 | 444.500 | 144.462 | 144.462 | 2080 | 64.50 | M260110EA | M260149DW-M260110 | |
| 330.302 | 438.023 | 120.650 | 114.300 | 1250 | 45.80 | Y1S-138172 | EE138131D-138172 | |
| 333.375 | 469.900 | 166.688 | 166.688 | 2730 | 93.90 | HM261010EA | HM261049DW-HM261010 | |
| 343.052 | 457.098 | 122.238 | 122.238 | 1560 | 52.60 | LM761610EA | LM761649DW-LM761610 | |
| 346.075 | 488.950 | 174.625 | 174.625 | 2940 | 108.00 | HM262710EA | HM262749D-HM262710 | |
