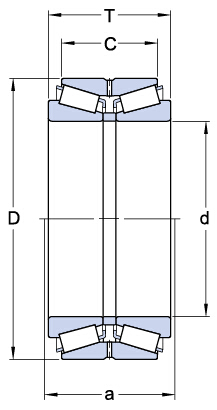

Boundary dimensions(mm)				Basic load ratings(kN)	Mass(Kg)	SPACER	Cone	Cup(D-Type)	Cup(DC-Type)
d	D	T	C	C1	(Approx.)	SPACER	Cone	Cup(D-Type)	Cup(CD-Type)
9.525	30.480	25.400	21.260	18	0.11	**	A2037	A2120D
11.986	30.480	25.400	21.260	18	0.09	X2S-A2047	A2047	A2120D
12.700	34.988	25.174	20.638	21.2	0.12	**	A4050	A4138D
14.989	34.988	25.174	20.638	21.2	0.11	X1S-A4059	A4059	A4138D
15.875	47.000	31.750	25.212	43	0.28	X1S-05062	05062	05185D
15.875	57.150	49.212	36.512	74.8	0.65	**	21063	21226D
19.050	57.150	49.212	36.512	74.8	0.61	X1S-21075	21075	21226D
19.987	47.000	31.750	25.212	43	0.24	X1S-05079	05079	05185D
22.225	50.005	33.340	25.400	47	0.28	X1S-07087X	07087	07196D	07196DC
22.225	50.005	33.340	25.400	47	0.19	X1S-07087X	07087X	07196D	07196DC
24.981	50.005	33.340	25.400	47	0.26	X1S-07097	07098	07196D	07196DC
25.400	50.005	33.340	25.400	47	0.26	X1S-07100	07100	07196D	07196DC
25.400	63.500	46.038	36.512	81	0.68	X1S-15101	15101	15251D
28.575	63.500	46.038	36.512	81	0.65	X1S-15112	15112	15251D
28.575	71.979	42.761	36.512	95	0.84	**	26112	26284D
28.575	76.200	47.625	38.100	105	1.08	X1S-02872	02872	02823D
29.987	62.000	39.688	36.258	70	0.54	X1S-17119	17118	17245D
30.162	62.000	39.688	36.258	70	0.51	X1S-17119	17119	17245D
30.226	69.012	46.040	38.100	88	0.77	X1S-14117A	14116	14276D
31.750	58.738	32.542	24.608	51	0.35	X6S-08125	08125	08231D
31.750	63.500	46.038	36.512	81	0.59	X1S-15125	15125	15251D
31.750	69.012	46.040	38.100	88	0.73	X1S-14125A	14125A	14276D
31.750	69.850	66.675	57.150	134	1.14	X2S-2580	2580	2523D
31.750	76.200	47.625	38.100	105	1.07	X1S-02875	02875	02823D
31.750	80.962	55.562	39.688	125	1.28	X1S-43125	43125	43319D	43319DC
33.338	69.850	66.675	57.150	134	1.10	X1S-2585	2585	2523D
33.338	71.979	42.761	36.512	95	0.76	X1S-26131	26131	26284D
33.338	80.962	55.562	39.688	125	1.24	X1S-43131	43131	43319D	43319DC
34.925	76.200	47.625	38.100	105	1.00	X1S-02877	02877	02823D
34.925	82.550	66.678	55.562	168	1.75	X1S-3478	3478	3423D
34.976	69.012	46.040	38.100	88	0.69	X2S-14137	14139	14276D
36.512	92.075	55.562	39.688	135	1.69	X1S-44143	44143	44363D
38.100	69.012	46.035	38.100	91	0.63	X1S-13687	13685	13621D	13621DC
38.100	69.012	46.035	38.100	91	0.65	X1S-13687	13687	13621D	13621DC
38.100	80.035	46.040	34.925	102	0.98	X1S-28150	28150	28318D
38.100	80.035	57.150	44.958	125	1.22	X1S-27880	27880	27820D
38.100	80.035	57.150	44.958	125	1.20	X1S-27880	27881	27820D
38.100	82.550	66.678	55.562	168	1.65	X1S-3490	3490	3423D
38.100	92.075	55.562	39.688	135	1.67	X1S-44150	44150	44363D
40.000	80.035	46.040	34.925	102	0.94	X1S-28158	28158	28318D
41.275	76.200	49.212	39.688	121	0.92	X1S-24780	24780	24720D	24720DC
41.275	92.075	55.562	39.688	135	1.59	X1S-44162	44162	44363D
41.275	95.250	65.090	44.450	161	2.02	X1S-53162	53162	53376D
42.862	82.550	44.450	34.925	105	1.00	X2S-22168	22168	22325D
42.875	82.931	57.150	47.625	145	1.35	X1S-25576	25577	25520D	25520DC
44.450	79.375	41.272	33.338	84	0.75	X1S-18685	18685	18620D	18620DC
44.450	82.931	57.150	47.625	145	1.29	X1S-25581	25580	25520D	25520DC
44.450	93.264	65.088	52.388	196	2.05	X1S-3782	3782	3729D	3729DC
44.450	95.250	61.915	50.800	205	2.00	X1S-438	438	432D	432DC
44.450	95.250	65.090	44.450	161	1.94	X2S-53176	53176	53376D
44.983	93.264	65.088	52.388	196	2.02	X1S-3776	3776	3729D	3729DC
45.000	90.119	50.800	44.450	131	1.38	X1S-358	358	353D	353DC
45.618	82.931	57.150	47.625	145	1.27	X1S-25590	25590	25520D	25520DC
46.038	79.375	41.272	33.338	83.8	0.73	X1S-18690	18690	18620D	18620DC
46.038	90.119	50.800	44.450	131	1.34	X1S-359-S	359S	353D	353DC
46.038	95.250	61.915	50.800	205	1.96	X1S-436	436	432D	432DC
47.625	93.264	65.088	52.388	196	1.94	X1S-3779	3779	3729D	3729DC
47.625	109.982	63.500	42.865	171	2.76	X2S-55187	55187	55433D	55433DC
50.800	80.962	42.865	34.925	97.9	0.76	L305649XA	L305649	L305610D
50.800	90.000	50.010	42.070	138	1.15	X1S-368A	368A	363D	363DC
50.800	93.264	65.088	52.388	196	1.82	X1S-3780	3780	3729D	3729DC
50.800	95.250	63.500	52.385	208	1.86	X1S-33889	33889	33821D	33821DC
50.800	109.982	63.500	42.865	171	2.66	X4S-55200	55200	55433D	55433DC
50.800	123.825	77.788	55.562	290	4.59	X1S-72200	72200C	72488D
51.592	90.000	50.010	42.070	138	1.13	X1S-368S	368S	363D	363DC
53.975	95.250	63.500	52.385	208	1.74	X1S-33885	33895	33821D	33821DC
53.975	111.125	79.375	63.500	276	3.36	X1S-539	539	533D	533DC
53.975	117.475	73.025	53.975	240	3.50	X1S-66212	66212	66462D
53.975	123.825	77.788	55.562	290	4.44	X1S-72212	72212C	72488D
53.975	129.982	69.850	47.625	248	4.25	X1S-66584	66584	66522D
57.150	92.075	42.070	34.130	101	1.08	L507949XB	L507949	L507914D
57.150	100.000	49.200	39.675	146	1.40	X1S-387	387A	384ED	384EDC
57.150	100.000	52.388	42.862	146	1.51	X1S-387A	387	384D	384DC
57.150	100.000	52.388	42.862	146	1.49	X1S-387A	387A	384D	384DC
57.150	107.950	65.090	53.975	219	2.48	X2S-462	462	452D	452DC
57.150	107.950	65.090	53.975	219	2.46	X2S-462	469	452D	452DC
57.150	117.475	73.025	53.975	240	3.36	X1S-66225	66225	66462D
57.150	123.825	79.375	63.500	307	4.46	X1S-555S	555S	552D	552DC
57.150	139.700	77.788	51.803	274	5.34	X1S-78225	78225	78549D
57.531	100.000	52.388	42.862	146	1.49	X1S-388A	388A	384D	384DC
59.972	129.982	69.850	47.625	248	3.98	X1S-66585	66589	66522D
60.325	100.000	55.560	44.450	170	1.65	X2S-28985	28985	28921D	28921DC
60.325	123.825	73.025	63.500	307	4.30	X1S-558	558	552D	552DC
62.738	100.000	55.560	44.450	170	1.55	X1S-28995	28995	28921D	28921DC
63.500	94.458	42.860	34.925	107	0.97	L610549XA	L610549	L610510D
63.500	110.000	52.388	46.038	159	1.85	X1S-395	390A	394D	394DC
63.500	112.712	55.562	42.862	177	2.22	X1S-29586	29585	29526D
63.500	112.712	68.262	55.562	269	2.69	X3S-39585	39585		39520DC
63.500	123.825	79.375	63.500	308	4.12	X2S-559	559	552D	552DC
63.500	139.700	77.788	51.803	275	5.03	X1S-78250	78250	78549D
66.675	110.000	52.388	46.038	159	1.75	X1S-395S	395A	394D	394DC
66.675	110.000	52.388	46.038	159	1.72	X1S-395S	395S	394D	394DC
66.675	123.825	79.375	63.500	308	3.91	X2S-560	560	552D	552DC
66.675	136.525	95.250	76.200	376	6.04	X1S-641	641	632D	632DC
68.262	110.000	52.388	46.038	159	1.67	X1S-399A	399A	394D	394DC
68.262	123.825	79.375	63.500	308	3.83	X1S-560S	560S	552D	552DC
69.850	103.188	57.150	49.215	107	1.47	L713049XB	L713049		L713012DC
69.850	114.287	58.738	46.038	177	2.20	X1S-29675	29675	29622D	29622DC
69.850	120.000	65.090	53.975	231	2.90	X1S-482	482	472D	472DC
69.850	120.000	71.438	58.738	289	3.13	X1S-47487	47487	47420D	47420DC
69.850	127.000	80.962	65.088	316	4.11	X2S-566	566	563D	563DC
69.850	136.525	95.250	76.200	376	5.82	X1S-643	643	632D	632DC
69.952	121.442	52.390	38.100	164	2.21	X1S-34274	34274	34478D	34478DC
70.000	120.000	65.090	53.975	231	2.90	X2S-484	484	472D	472DC
71.438	117.475	66.675	53.975	222	2.52	X1S-33281	33281	33462D	33462DC
71.438	120.000	71.438	58.738	289	3.02	X1S-47490	47490	47420D	47420DC
71.438	127.000	80.962	65.088	316	4.00	X1S-567A	567A	563D	563DC
71.438	136.525	95.250	76.200	376	5.70	X1S-645	644	632D	632DC
73.025	114.287	58.738	46.038	177	2.06	X1S-29685	29685	29622D	29622DC
73.025	117.475	66.675	53.975	222	2.64	X1S-33287	33287	33462D	33462DC
73.025	127.000	80.962	65.088	316	3.90	X2S-567	567	563D	563DC
73.817	114.287	58.738	46.038	177	2.01	X1S-29688	29688	29622D	29622DC
76.200	105.570	31.750	23.810	65.9	0.70	LL714649XA	LL714649	LL714610D
76.200	109.538	42.860	34.925	111	1.28	L814749XA	L814749	L814710D	L814710DC
76.200	121.442	52.390	38.100	164	1.94	X2S-34301	34300	34478D	34478DC
76.200	136.525	69.850	53.975	248	3.98	X1S-495S	495A	493D	493DC
76.200	139.992	82.550	66.675	332	5.24	X1S-575	575	572D	572DC
76.200	155.575	101.600	85.725	511	8.76	X1S-748S	748S	742D	742DC
76.200	161.925	105.562	70.637	478	8.98	X4S-9285	9285	9220D
76.200	177.800	109.538	74.612	494	12.10	X1S-9380	9380	9320D
80.962	139.992	82.550	66.675	332	4.89	X1S-581	581	572D	572DC
80.962	155.575	101.600	85.725	511	8.29	X3S-740	740	742D	742DC
82.550	115.888	47.625	39.690	145	1.41	L116149XA	L116149	L116110D	L116110DC
82.550	136.525	69.850	53.975	248	3.60	X1S-495S	495	493D	493DC
82.550	139.992	82.550	66.675	332	4.77	X1S-580	580	572D	572DC
82.550	152.400	95.250	76.200	398	6.97	X1S-663	663	654D	654DC
82.550	155.575	101.600	85.725	511	8.08	X1S-749A	750A	742D	742DC
84.138	177.800	109.538	74.612	494	11.30	X1S-9385	9385	9320D
85.000	200.025	115.888	80.216	654	16.60	X1S-98335	98335	98789D	98789DC
85.026	155.575	101.600	85.725	511	7.92	X2S-749	749	742D	742DC
85.725	136.525	69.850	53.975	248	3.39	X3S-497	497	493D	493DC
85.725	142.875	93.660	76.200	421	6.00	HM617048XE	HM617049		HM617011DC
85.725	152.400	95.250	76.200	398	6.69	X1S-665	665	654D	654DC
85.725	171.450	125.412	100.012	659	12.70	X2S-841	841	834D
88.900	123.825	50.797	42.862	149	1.66	L217849XA	L217849	L217810D	L217810DC
88.900	152.400	82.550	63.500	348	5.79	X1S-593	593	592D	592DC
88.900	161.925	104.775	85.725	527	8.76	X7S-759	759	752D	752DC
88.900	171.450	125.412	100.012	659	12.40	X1S-850	850	834D
88.900	190.500	127.000	104.775	860	17.30	HH221434XB	HH221434	HH221410D	HH221410DC
88.900	200.025	115.888	80.216	654	16.20	X1S-98350	98350	98789D	98789DC
89.916	189.967	88.852	54.102	461	10.50	HM921343XA	HM921343	HM921310D
89.980	161.900	69.850	44.450	327	5.52	M919049XA	M919048	M919010D
90.488	161.925	104.775	85.725	527	8.57	X1S-760	760	752D	752DC
92.075	152.400	82.550	63.500	348	5.46	X1S-598	598A	592D	592DC
95.250	130.175	47.622	39.688	153	1.74	L319249XB	L319249	L319210D
95.250	152.400	82.550	63.500	348	5.26	X2S-594	594	592D	592DC
95.250	152.400	82.550	63.500	348	5.24	X2S-594	594A	592D	592DC
95.250	168.275	92.075	69.850	426	8.20	X1S-683	683	672D	672DC
95.250	190.500	127.000	101.600	738	15.70	X1S-864	864	854D	854DC
95.250	190.500	127.000	104.775	860	16.40	HH221440XA	HH221440	HH221410D	HH221410DC
96.838	149.225	66.672	52.388	262	3.91	X1S-42381	42381	42587D	42587DC
98.425	161.925	82.547	61.912	360	6.17	X1S-52387	52387	52637D	52637DC
98.425	168.275	92.075	69.850	426	7.87	X1S-685	685	672D	672DC
98.425	190.500	127.000	104.775	860	16.10	HH221442XB	HH221442	HH221410D	HH221410DC
99.982	190.500	127.000	104.775	860	15.80	HH221447XA	HH221447	HH221410D	HH221410DC
101.600	146.050	49.212	39.688	154	2.52	L521945XA	L521945	L521910D	L521910DC
101.600	161.925	82.547	61.912	360	5.88	X1S-52400	52400	52637D	52637DC
101.600	168.275	92.075	69.850	426	7.54	X1S-687	687	672D	672DC
101.600	180.975	104.775	85.725	557	10.80	X1S-780	780	774D	774DC
101.600	190.500	127.000	101.600	738	14.80	X3S-861	861	854D	854DC
101.600	190.500	127.000	104.775	860	15.50	HH221449XA	HH221449	HH221410D	HH221410DC
101.600	200.025	115.888	80.216	654	14.70	X1S-98400	98400	98789D	98789DC
101.600	212.725	142.875	117.475	922	22.80	X1S-941	941		932CD
101.600	212.725	142.875	117.475	1090	24.00	HH224335XB	HH224335		HH224310CD
104.775	180.975	104.775	85.725	557	10.40	X3S-782	782	774D	774DC
106.362	165.100	82.550	63.500	365	5.98	X1S-56418	56418	56650D	56650DC
107.950	146.050	49.212	39.688	154	2.18	L521949XA	L521949	L521910D	521910DC
107.950	158.750	53.978	39.688	186	2.26	X1S-37425	37425	37626D	37626DC
107.950	165.100	82.550	63.500	365	5.82	X1S-56425	56425	56650D	56650DC
107.950	190.500	106.362	80.962	586	11.90	X2S-71425	71425	71751D	71751DC
107.950	212.725	142.875	117.475	1090	22.80	HH224340XA	HH224340		HH224310CD
109.538	158.750	53.978	39.688	186	3.00	X1S-37431	37431	37626D	37626DC
109.987	159.987	74.612	58.738	315	4.78	LM522549XA	LM522548	LM522510D	LM522510DC
109.992	177.800	92.075	69.850	442	8.31	X1S-64433	64433	64700D	64700DC
111.125	214.312	115.888	84.138	757	18.10	H924045XA	H924045	H924010D
111.125	241.300	158.750	107.950	1080	31.50	HH924349XA	HH924349	HH924310D
114.300	152.400	47.625	38.100	160	2.14	L623149XA	L623149	L623110D	L623110DC
114.300	177.800	92.075	69.850	442	7.80	X1S-64450	64450	64700D	64700DC
114.300	190.500	106.362	80.962	586	11.10	X3S-71450	71450	71751D	71751DC
114.300	212.725	142.875	117.475	922	20.50	X1S-938	938		932CD
114.300	212.725	142.875	117.475	1090	21.70	HH224346XA	HH224346		HH224310CD
114.300	228.600	115.888	84.138	797	20.70	HM926740XA	HM926740	HM926710D
114.976	212.725	142.875	117.475	1090	21.50	HH224349XA	HH224349		HH224310CD
115.087	190.500	106.362	80.962	586	10.90	X1S-71453	71453	71751D	71751DC
120.650	161.925	63.500	53.975	169	2.98	L624549XB	L624549	L624514D
120.650	169.974	58.737	49.212	229	3.98	L225842XA	L225842	L225812D
120.650	174.625	77.788	61.912	393	5.72	M224749XC	M224749	M224710D	M224710DC
120.650	206.375	107.950	82.550	609	13.50	X2S-795	795		792CD
120.650	234.950	142.875	114.300	1010	26.30	X1S-95475	95475		95927CD
123.825	182.562	85.725	73.025	431	7.51	X1S-48286	48286	48220D	48220DC
127.000	169.974	58.738	49.212	229	3.47	L225849XA	L225849	L225812D
127.000	182.562	85.725	73.025	431	7.12	X1S-48290	48290	48220D	48220DC
127.000	196.850	101.600	85.725	591	10.70	X1S-67388	67388	67322D	67322DC
127.000	228.600	115.888	84.138	605	17.90	X1S-97500	97500	97901D
127.000	228.600	115.888	84.138	797	18.80	HM926747XA	HM926747	HM926710D
127.000	234.950	142.875	114.300	1010	25.10	X4S-95500	95500		95927CD
127.792	228.600	115.888	84.138	797	18.60	HM926749XA	HM926749	HM926710D
128.588	206.375	107.950	82.550	609	12.40	X1S-799	799		792CD
130.000	206.375	107.950	82.550	609	12.10	X1S-797	797		792CD
130.175	196.850	101.600	85.725	591	10.40	X1S-67389	67389	67322D	67322DC
130.175	206.375	107.950	82.550	609	12.10	X1S-799A	799A		792CD
133.350	177.008	57.150	47.625	236	3.71	L327249XA	L327249	L327210D	L327210DC
133.350	190.500	85.725	73.025	456	7.45	X1S-48385	48385	48320D	48320DC
133.350	196.850	101.600	85.725	591	9.78	X1S-67390	67390	67322D	67322DC
133.350	215.900	106.362	80.962	616	13.80	X1S-74525	74525		74851CD
133.350	234.950	142.875	114.300	1010	23.60	X1S-95525	95525		95927CD
136.525	190.500	85.725	73.025	456	7.02	X1S-48393	48393	48320D	48320DC
136.525	228.600	123.825	98.425	839	18.90	X1S-896	896		892CD
139.700	215.900	106.362	80.962	616	12.80	X1S-74550	74550		74851CD
139.700	222.250	75.692	53.975	398	9.06	X1S-73551	73551		73876CD
139.700	228.600	123.825	98.425	839	18.30	X1S-898	898		892CD
139.700	307.975	200.025	155.575	1960	67.00	HH234032XB	HH234031		HH234011CD
142.875	200.025	87.315	73.025	461	7.94	X1S-48685	48685	48620D	48620DC
142.875	222.250	75.692	53.975	398	8.72	X1S-73562	73562		73876CD
146.050	193.675	65.085	53.975	316	4.89	X1S-36690	36690	36620D	36620DC
146.050	236.538	131.762	106.362	962	20.60	HM231140XA	HM231140		HM231111CD
146.050	241.300	131.762	106.362	830	21.80	X1S-82576	82576		82951CD
146.050	254.000	149.225	111.125	1060	28.30	X4S-99575	99575		99102CD
146.050	268.288	160.338	125.412	1260	39.60	X3S-107057	EE107057		107105CD
149.225	236.538	131.762	106.362	962	19.90	HM231149XA	HM231149		HM231111CD
