TAPERED ROLLER THRUST BEARING (INCH SIZE) >>

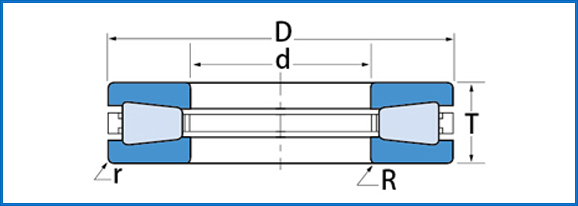

Drawing 1

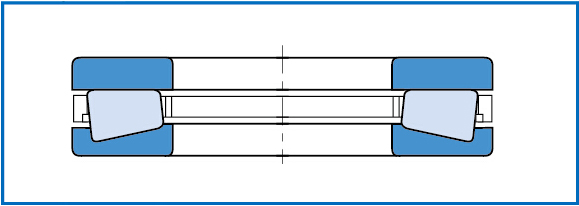

Drawing 2
Truck and Trailer Parts

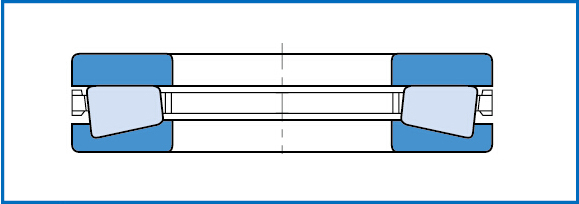

Drawing 3
Drawing 4
New Products
| Bearings No. | Dimension(mm) | load rating | Drawing | Weight | ||
| d | D | T | Ca | kg | ||
| T135 | 34.925 | 76.200 | 18.875 | 123000 | 1 | 0.40 |
| T1750 | 44.450 | 84.734 | 18.258 | 162000 | 1 | 0.49 |
| T200A | 50.800 | 109.538 | 22.225 | 282000 | 1 | 1.09 |
| T2520 | 63.500 | 117.475 | 25.400 | 290000 | 1 | 1.34 |
| T311 | 76.200 | 161.925 | 33.338 | 586000 | 1 | 3.64 |
| T411 | 101.600 | 215.900 | 46.038 | 974000 | 1 | 8.89 |
| T441 | 111.760 | 223.520 | 55.880 | 1040000 | 1 | 11.40 |
| T451 | 114.300 | 250.825 | 53.975 | 1360000 | 1 | 15.00 |
| T4920 | 124.993 | 185.738 | 25.400 | 360000 | 2 | 2.34 |
| T4921 | 124.993 | 185.610 | 25.400 | 360000 | 2 | 2.34 |
| T520 | 127.000 | 250.825 | 55.562 | 1190000 | 1 | 13.90 |
| T511 | 127.000 | 266.700 | 58.738 | 1430000 | 1 | 17.80 |
| T511A | 128.588 | 266.700 | 58.738 | 1430000 | 1 | 17.80 |
| T611 | 152.400 | 317.500 | 69.850 | 2030000 | 1 | 29.30 |
| T651 | 165.100 | 311.150 | 88.900 | 2180000 | 1 | 38.30 |
| T660V | 168.275 | 304.800 | 69.850 | 1900000 | 3 | 23.20 |
| T661 | 168.278 | 304.800 | 69.850 | 1700000 | 1 | 27.80 |
| T691 | 174.625 | 358.775 | 82.550 | 2390000 | 1 | 45.30 |
| T711 | 177.800 | 368.300 | 82.550 | 2680000 | 1 | 48.40 |
| T7010V | 177.800 | 368.300 | 82.550 | 2990000 | 3 | 43.90 |
| T709 | 177.800 | 431.800 | 101.600 | 3960000 | 1 | 86.30 |
| T7519 | 190.000 | 355.600 | 74.219 | 2180000 | 1 | 35.90 |
| T811 | 203.200 | 419.100 | 92.075 | 3350000 | 1 | 69.30 |
| T811X | 203.200 | 491.100 | 120.650 | 3350000 | 1 | 92.70 |
| T9020 | 228.600 | 431.800 | 88.773 | 3320000 | 1 | 65.70 |
| T911 | 228.600 | 482.600 | 104.775 | 4410000 | 1 | 105.00 |
| T9010V | 228.600 | 482.600 | 104.775 | 4930000 | 3 | 95.10 |
| T911A | 234.950 | 482.600 | 104.775 | 4410000 | 1 | 103.00 |
| T921 | 234.950 | 546.100 | 127.000 | 6050000 | 1 | 171.00 |
| T921V | 234.950 | 546.100 | 127.000 | 6050000 | 1 | 171.00 |
| T1011 | 254.000 | 539.750 | 117.475 | 5480000 | 1 | 147.00 |
| T1115 | 279.400 | 495.300 | 133.350 | 4200000 | 1 | 125.00 |
| T1120 | 279.400 | 603.250 | 136.525 | 7000000 | 1 | 212.00 |
| T1421 | 355.600 | 533.400 | 101.600 | 3250000 | 1 | 84.10 |
| T14520 | 368.300 | 603.250 | 120.650 | 5460000 | 1 | 144.00 |
| T15500 | 393.700 | 495.300 | 44.450 | 1440000 | 4 | 20.40 |
| T16021 | 406.600 | 711.200 | 146.050 | 8250000 | 1 | 264.00 |
| T16050 | 406.400 | 838.200 | 177.800 | 12800000 | 1 | 517.00 |
| T20020 | 508.000 | 990.600 | 196.850 | 17500000 | 1 | 764.00 |
| T20750 | 527.050 | 635.000 | 44.450 | 1580000 | 4 | 28.70 |
| T30620 | 777.697 | 889.000 | 47.625 | 2080000 | 4 | 45.60 |
| T45750 | 1162.050 | 1282.700 | 52.388 | 3180000 | 4 | 79.80 |
| T45751 | 1162.050 | 1282.700 | 57.099 | 2390000 | 4 | 89.50 |
| T48000 | 1219.200 | 1524.000 | 136.525 | 16200000 | 1 | 596.00 |
| T53250 | 1352.550 | 1473.200 | 52.375 | 3430000 | 4 | 94.10 |
