TAPERED ROLLER THRUST BEARING (INCH SIZE) >>

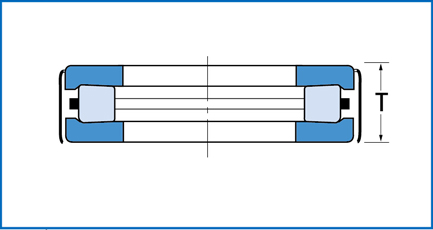

Drawing 1

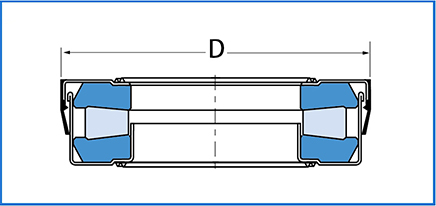

Drawing 2
Truck and Trailer Parts

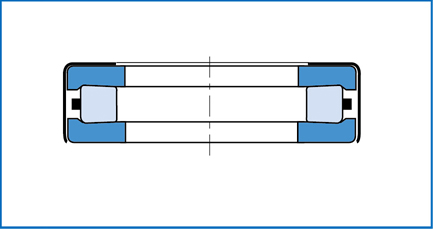

Drawing 3
New Products
| Bearings No. | Dimension(mm) | load rating | Drawing | Weight | |||
| NO hole | hole | d | D | T | Ca | kg | |
| T63 | T63W | 16.129 | 41.275 | 12.700 | 11100 | 1 | 0.08 |
| T77 | T77W | 19.304 | 41.275 | 12.700 | 11100 | 1 | 0.07 |
| T76 | T76W | 19.304 | 41.275 | 13.487 | 11100 | 1 | 0.08 |
| T86 | 20.256 | 39.688 | 14.288 | 10700 | 1 | 0.07 | |
| T82 | T82W | 20.879 | 41.275 | 13.487 | 11100 | 1 | 0.07 |
| T83 | T83W | 20.879 | 42.164 | 13.487 | 13200 | 2 | 0.09 |
| T88 | T88W | 22.479 | 48.021 | 15.088 | 17300 | 1 | 0.11 |
| T89 | 22.479 | 48.021 | 15.875 | 17350 | 1 | 0.12 | |
| T93 | 24.054 | 44.958 | 13.487 | 11950 | 1 | 0.09 | |
| T94 | T94W | 24.054 | 48.021 | 15.088 | 17350 | 1 | 0.11 |
| T95 | T95W | 24.130 | 50.800 | 15.875 | 18600 | 1 | 0.13 |
| T101 | T101W | 25.654 | 50.800 | 15.875 | 18600 | 1 | 0.13 |
| T104 | T104W | 26.289 | 50.800 | 15.875 | 18600 | 1 | 0.13 |
| T107 | T107W | 27.229 | 50.800 | 15.875 | 18600 | 1 | 0.12 |
| T110 | T110W | 28.829 | 53.188 | 15.875 | 20000 | 1 | 0.14 |
| T113 | T113W | 28.829 | 55.562 | 15.875 | 20000 | 1 | 0.15 |
| T120 | 30.416 | 54.745 | 11.430 | 16500 | 2 | 0.11 | |
| T119 | T119W | 30.416 | 55.562 | 15.875 | 20000 | 1 | 0.15 |
| T121 | 30.716 | 55.562 | 15.875 | 20000 | 1 | 0.16 | |
| T126 | T126W | 32.004 | 55.562 | 15.875 | 20000 | 1 | 0.14 |
| T139 | T139W | 35.179 | 58.738 | 15.875 | 21400 | 1 | 0.15 |
| T142 | T142W | 35.179 | 62.708 | 19.431 | 22400 | 1 | 0.23 |
| T149 | T149W | 38.303 | 65.883 | 19.431 | 23600 | 1 | 0.24 |
| T158 | 40.234 | 65.883 | 19.431 | 23600 | 1 | 0.23 | |
| T1760 | 44.623 | 76.200 | 10.992 | 31600 | 3 | 0.18 | |
| T199 | T199W | 51.054 | 74.612 | 15.875 | 26000 | 1 | 0.20 |
| T309 | T309W | 78.583 | 102.395 | 15.875 | 35400 | 1 | 0.29 |
| T387 | T387W | 98.425 | 127.000 | 17.462 | 43000 | 1 | 0.50 |
| T484 | 123.012 | 152.400 | 17.462 | 47500 | 1 | 0.63 | |
| T581 | 147.638 | 177.800 | 17.462 | 51500 | 1 | 0.89 | |
