TAPERED ROLLER THRUST BEARING (INCH SIZE) >>
Truck and Trailer Parts

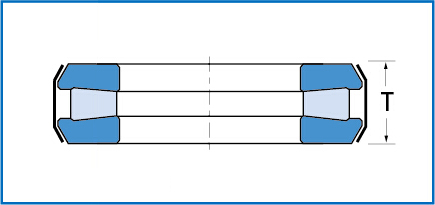

Drawing 2

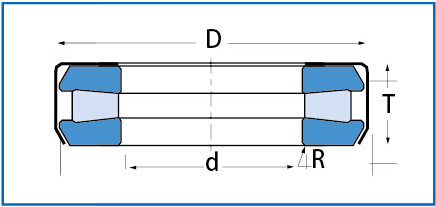

Drawing 1

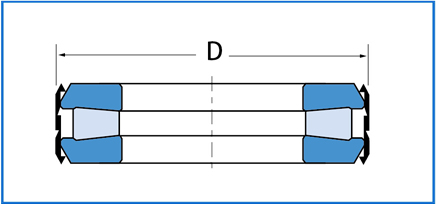

Drawing 3

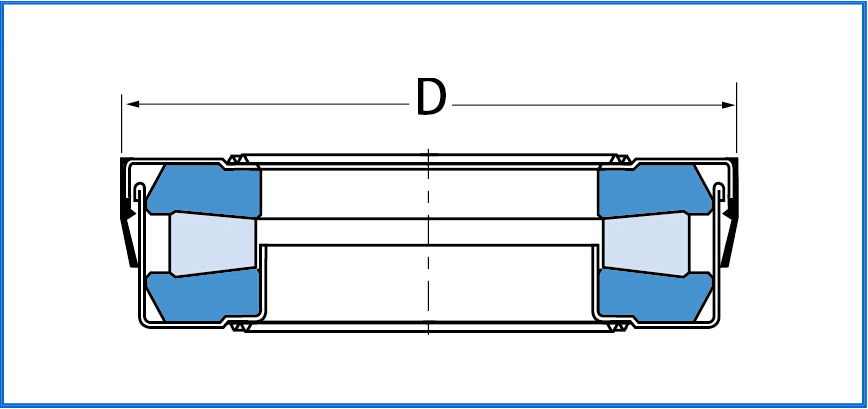

Drawing 4
New Products
| 推力圆锥轴承 | |||||||
| Bearings No. | Dimension(mm) | load rating(N) | Drawing | Weight | |||
| NO hole | hole | d | D | T | Ca | kg | |
| T130 | 27.102 | 66.675 | 19.446 | 42200 | 1 | 0.34 | |
| T1260 | T1260W | 32.004 | 55.562 | 15.875 | 27600 | 1 | 0.17 |
| T128 | 32.004 | 66.675 | 18.654 | 42200 | 2 | 0.29 | |
| T127 | T127W | 32.004 | 66.675 | 19.446 | 42200 | 1 | 0.31 |
| T1380 | 35.179 | 59.400 | 15.875 | 31200 | 4 | 0.35 | |
| T136 | 35.179 | 66.675 | 18.654 | 42200 | 2 | 0.28 | |
| T138 | T138W | 35.179 | 66.675 | 19.446 | 42200 | 1 | 0.30 |
| T144 | T144W | 36.754 | 66.675 | 19.446 | 42200 | 1 | 0.29 |
| T152 | 38.354 | 72.619 | 20.368 | 47000 | 2 | 0.35 | |
| T151 | T151W | 38.354 | 72.619 | 21.433 | 47000 | 1 | 0.37 |
| T157 | T157W | 39.954 | 72.619 | 21.433 | 47000 | 1 | 0.37 |
| T178 | 40.386 | 73.000 | 19.000 | 47500 | 1 | 0.32 | |
| T163 | T163W | 41.529 | 72.619 | 21.443 | 47000 | 1 | 0.35 |
| T169 | T169W | 43.104 | 82.956 | 23.812 | 64000 | 1 | 0.55 |
| T176 | T176W | 44.704 | 82.956 | 23.812 | 64000 | 1 | 0.54 |
| T177 | 45.000 | 73.000 | 20.000 | 47500 | 1 | 0.32 | |
| T177S | 45.000 | 74.500 | 20.221 | 47500 | 3 | 0.35 | |
| T177A | 45.484 | 73.000 | 20.000 | 47500 | 1 | 0.33 | |
| T1921 | 46.279 | 80.010 | 15.977 | 56500 | 1 | 0.34 | |
| T182 | T182W | 46.279 | 82.956 | 23.812 | 64000 | 1 | 0.52 |
| T1920 | 46.279 | 85.471 | 16.383 | 56500 | 3** | 0.36 | |
| T189 | T189W | 47.879 | 82.956 | 23.020 | 64000 | 2 | 0.50 |
| T188 | T188W | 47.879 | 82.956 | 23.812 | 64000 | 1 | 0.52 |
| T1880 | 47.879 | 83.210 | 23.546 | 57000 | 3** | 0.34 | |
| T1930 | 48.997 | 85.471 | 16.383 | 56500 | 3 | 0.30 | |
| T193 | T193W | 49.454 | 93.269 | 26.187 | 86000 | 2 | 0.80 |
| T194 | T194W | 49.454 | 93.269 | 26.975 | 86000 | 1 | 0.81 |
| T201 | T201W | 51.054 | 93.269 | 26.187 | 86000 | 2 | 0.77 |
| T202 | T202W | 51.054 | 93.269 | 26.975 | 86000 | 1 | 0.80 |
| T209 | T209W | 52.629 | 93.269 | 26.187 | 86000 | 2 | 0.75 |
| T208 | T208W | 52.629 | 93.269 | 26.975 | 86000 | 1 | 0.79 |
| T252 | T252W | 63.754 | 111.125 | 25.796 | 124000 | 2 | 1.01 |
| T251 | T251W | 63.754 | 111.125 | 26.988 | 124000 | 1 | 1.07 |
| T301 | T301W | 76.454 | 133.350 | 33.338 | 178500 | 2 | 1.87 |
| T302 | T302W | 76.454 | 133.350 | 34.925 | 178500 | 1 | 1.99 |
| T350 | 88.900 | 133.350 | 33.335 | 115500 | 2 | 1.41 | |
| T4020 | 102.108 | 179.619 | 31.750 | 324000 | 2 | 3.70 | |
| T402 | T402W | 102.108 | 179.619 | 44.450 | 344000 | 2 | 4.84 |
| T600 | T600W | 152.400 | 241.300 | 76.200 | 575000 | 1 | 14.10 |
