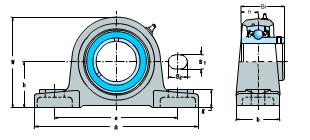

Shaft Dia		Boundary dimensions(mm)										Bolt Size	Bearing No.	Housing No.	Mass	Bearing Number
in.	mm	h	a	e	b	s1	s2	g	w	Bi	n	Bolt Size	Bearing No.	Housing No.	Kg	XLB
1/2		31.8	127	96	31	13	16	14	63	31	12.7	3/8	UC201-8	AK204	0.7	UCAK201-8
5/8		31.8	127	96	31	13	16	14	63	31	12.7	3/8	UC202-10	AK204	0.7	UCAK202-10
	20	31.8	127	96	31	13	16	14	63	31	12.7	M10	UC204	AK204	0.7	UCAK204
3/4		31.8	127	96	31	13	16	14	63	31	12.7	3/8	UC204-12	AK204	0.7	UCAK204-12
	25	33.3	140	105	38	13	19	15	66.5	34	14.3	M10	UC205	AK205	0.9	UCAK205
7/8		33.3	140	105	38	13	19	15	66.5	34	14.3	3/8	UC205-14	AK205	0.9	UCAK205-14
15/16		33.3	140	105	38	13	19	15	66.5	34	14.3	3/8	UC205-15	AK205	0.9	UCAK205-15
1		33.3	140	105	38	13	19	15	66.5	34	14.3	3/8	UC205-16	AK205	0.9	UCAK205-16
	30	36.7	160	121	44	14	19	16	79	38.1	15.9	M14	UC206	AK206	1.4	UCAK206
1-1/16		36.7	160	121	44	14	19	16	79	38.1	15.9	1/2	UC206-17	AK206	1.4	UCAK206-17
1-1/8		36.7	160	121	44	14	19	16	79	38.1	15.9	1/2	UC206-18	AK206	1.4	UCAK206-18
1-3/16		36.7	160	121	44	14	19	16	79	38.1	15.9	1/2	UC206-19	AK206	1.4	UCAK206-19
1-1/4		36.7	160	121	44	14	19	16	79	38.1	15.9	1/2	UC206-20	AK206	1.4	UCAK206-20
	35	46	167	127	48	15	19	17	91	42.9	17.5	M14	UC207	AK207	1.7	UCAK207
1-1/4		46	167	127	48	15	19	17	91	42.9	17.5	1/2	UC207-20	AK207	1.7	UCAK207-20
1-5/16		46	167	127	48	15	19	17	91	42.9	17.5	1/2	UC207-21	AK207	1.7	UCAK207-21
1-3/8		46	167	127	48	15	19	17	91	42.9	17.5	1/2	UC207-22	AK207	1.7	UCAK207-22
1-7/16		46	167	127	48	15	19	17	91	42.9	17.5	1/2	UC207-23	AK207	1.7	UCAK207-23
	40	49.2	180	136	52	15	21	18	98	49.2	19.0	M14	UC208	AK208	2.0	UCAK208
1-1/2		49.2	180	136	52	15	21	18	98	49.2	19.0	1/2	UC208-24	AK208	2.0	UCAK208-24

1-9/16		49.2	180	136	52	15	21	18	98	49.2	19.0	1/2	UC208-25	AK208	2.0	UCAK208-25
	45	52.4	189	146	54	15	21	20	105	49.2	19.0	M14	UC209	AK209	2.8	UCAK209
1-5/8		52.4	189	146	54	15	21	20	105	49.2	19.0	1/2	UC209-26	AK209	2.8	UCAK209-26
1-11/16		52.4	189	146	54	15	21	20	105	49.2	19.0	1/2	UC209-27	AK209	2.8	UCAK209-27
1-3/4		52.4	189	146	54	15	21	20	105	49.2	19.0	1/2	UC209-28	AK209	2.8	UCAK209-28
	50	55.6	204	159	57	19	22	21	111.5	51.6	19.0	M16	UC210	AK210	3.2	UCAK210
1-7/8		55.6	204	159	57	19	22	21	111.5	51.6	19.0	5/8	UC210-30	AK210	3.2	UCAK210-30
1-15/16		55.6	204	159	57	19	22	21	111.5	51.6	19.0	5/8	UC210-31	AK210	3.2	UCAK210-31
2		55.6	204	159	57	19	22	21	111.5	51.6	19.0	5/8	UC210-32	AK210	3.2	UCAK210-32
	55	61.9	217	172	60	19	22	22	123	55.6	22.2	M16	UC211	AK211	4.9	UCAK211
2		61.9	217	172	60	19	22	22	123	55.6	22.2	5/8	UC211-32	AK211	4.9	UCAK211-32
2-1/8		61.9	217	172	60	19	22	22	123	55.6	22.2	5/8	UC211-34	AK211	4.9	UCAK211-34
2-3/16		61.9	217	172	60	19	22	22	123	55.6	22.2	5/8	UC211-35	AK211	4.9	UCAK211-35
	60	68.3	238	186	66	19	25	24	136	65.1	25.4	M16	UC212	AK212	5.3	UCAK212
2-1/4		68.3	238	186	66	19	25	24	136	65.1	25.4	5/8	UC212-36	AK212	5.3	UCAK212-36
2-3/8		68.3	238	186	66	19	25	24	136	65.1	25.4	5/8	UC212-38	AK212	5.3	UCAK212-38
2-7/16		68.3	238	186	66	19	25	24	136	65.1	25.4	5/8	UC212-39	AK212	5.3	UCAK212-39
