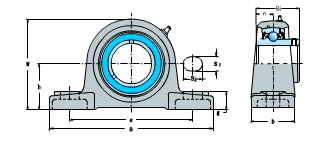

Shaft Dia		Boundary dimensions(mm)										Bolt Size	Bearing No.	Housing No.	Mass	Bearing Number
in.	mm	h	a	e	b	s1	s2	g	w	Bi	n	Bolt Size	Bearing No.	Housing No.	Kg	XLB
1/2		33.3	127	95	38	13	16	15	65	31	12.7	3/8	UC201-8	P204	0.8	UCP201-8
5/8		33.3	127	95	38	13	16	15	65	31	12.7	3/8	UC202-10	P204	0.8	UCP202-10
	20	33.3	127	95	38	13	16	15	65	31	12.7	M10	UC204	P204	0.8	UCP204
3/4		33.3	127	95	38	13	16	15	65	31	12.7	3/8	UC204-12	P204	0.8	UCP204-12
	25	36.6	140	105	38	13	16	16	70	34	14.3	M10	UC205	P205	1	UCP205
7/8		36.6	140	105	38	13	16	16	70	34	14.3	3/8	UC205-14	P205	1	UCP205-14
15/16		36.6	140	105	38	13	16	16	70	34	14.3	3/8	UC205-15	P205	1	UCP205-15
1		36.6	140	105	38	13	16	16	70	34	14.3	3/8	UC205-16	P205	1	UCP205-16
	30	42.9	165	121	48	17	21	18	83	38.1	15.9	M14	UC206	P206	1.6	UCP206
1-1/16		42.9	165	121	48	17	21	18	83	38.1	15.9	1/2	UC206-17	P206	1.6	UCP206-17
1-1/8		42.9	165	121	48	17	21	18	83	38.1	15.9	1/2	UC206-18	P206	1.6	UCP206-18
1-3/16		42.9	165	121	48	17	21	18	83	38.1	15.9	1/2	UC206-19	P206	1.6	UCP206-19
1-1/4		42.9	165	121	48	17	21	18	83	38.1	15.9	1/2	UC206-20	P206	1.6	UCP206-20
	35	47.6	167	127	48	17	21	19	94	42.9	17.5	M14	UC207	P207	2.1	UCP207
1-1/4		47.6	167	127	48	17	21	19	94	42.9	17.5	1/2	UC207-20	P207	2.1	UCP207-20
1-5/16		47.6	167	127	48	17	21	19	94	42.9	17.5	1/2	UC207-21	P207	2.1	UCP207-21
1-3/8		47.6	167	127	48	17	21	19	94	42.9	17.5	1/2	UC207-22	P207	2.1	UCP207-22
1-7/16		47.6	167	127	48	17	21	19	94	42.9	17.5	1/2	UC207-23	P207	2.1	UCP207-23
	40	49.2	184	137	54	17	25	19	100	49.2	19.0	M14	UC208	P208	2.6	UCP208
1-1/2		49.2	184	137	54	17	25	19	100	49.2	19.0	1/2	UC208-24	P208	2.6	UCP208-24

1-9/16		49.2	184	137	54	17	25	19	100	49.2	19.0	1/2	UC208-25	P208	2.6	UCP208-25
	45	54.0	190	146	54	17	25	20	108	49.2	19.0	M14	UC209	P209	3	UCP209
1-5/8		54.0	190	146	54	17	25	20	108	49.2	19.0	1/2	UC209-26	P209	3	UCP209-26
1-11/16		54.0	190	146	54	17	25	20	108	49.2	19.0	1/2	UC209-27	P209	3	UCP209-27
1-3/4		54.0	190	146	54	17	25	20	108	49.2	19.0	1/2	UC209-28	P209	3	UCP209-28
	50	57.2	206	159	60	20	25	22	114	51.6	19.0	M16	UC210	P210	3.6	UCP210
1-7/8		57.2	206	159	60	20	25	22	114	51.6	19.0	5/8	UC210-30	P210	3.6	UCP210-30
1-15/16		57.2	206	159	60	20	25	22	114	51.6	19.0	5/8	UC210-31	P210	3.6	UCP210-31
2		57.2	206	159	60	20	25	22	114	51.6	19.0	5/8	UC210-32	P210	3.6	UCP210-32
	55	63.5	219	171	60	20	25	22	126	55.6	22.2	M16	UC211	P211	4.4	UCP211
2		63.5	219	171	60	20	25	22	126	55.6	22.2	5/8	UC211-32	P211	4.4	UCP211-32
2-1/8		63.5	219	171	60	20	25	22	126	55.6	22.2	5/8	UC211-34	P211	4.4	UCP211-34
2-3/16		63.5	219	171	60	20	25	22	126	55.6	22.2	5/8	UC211-35	P211	4.4	UCP211-35
	60	69.8	241	184	70	20	25	25	138	65.1	25.4	M16	UC212	P212	6.2	UCP212
2-1/4		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-36	P212	6.2	UCP212-36
2-3/8		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-38	P212	6.2	UCP212-38
2-7/16		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-39	P212	6.2	UCP212-39
	65	76.2	265	203	70	25	29	27	150	65.1	25.4	M20	UC213	P213	7	UCP213
2-1/2		76.2	265	203	70	25	29	27	150	65.1	25.4	3/4	UC213-40	P213	7	UCP213-40
	70	79.4	266	210	72	25	31	27	156	74.6	30.2	M20	UC214	P214	7.6	UCP214

2-11/16		79.4	266	210	72	25	31	27	156	74.6	30.2	3/4	UC214-43	P214	7.6	UCP214-43
2-3/4		79.4	266	210	72	25	31	27	156	74.6	30.2	3/4	UC214-44	P214	7.6	UCP214-44
	75	82.6	275	217	74	25	31	28	163	77.8	33.3	M20	UC215	P215	8.5	UCP215
2-15/16		82.6	275	217	74	25	31	28	163	77.8	33.3	3/4	UC215-47	P215	8.5	UCP215-47
3		82.6	275	217	74	25	31	28	163	77.8	33.3	3/4	UC215-48	P215	8.5	UCP215-48
