Double row angular contact ball bearings(DAC Series)

Double row angular contact ball bearings(DAC Series)

Double row angular contact ball bearings(DAC Series)
0.00
0.00

Double row angular contact ball bearings(DAC Series)

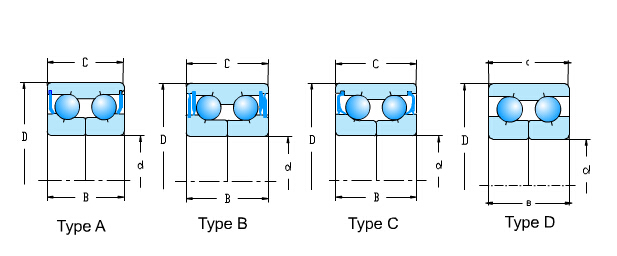

Boundary dimensions(mm)

Mass(Kg)

Bearing Number

d

D

B

C

approx

SKF

FAG

Other Co.

XLB

25 52 20.6 20.6 0.19 617546A DAC255200206
25 52 37 37 0.31 445539A 566030 DAC25520037
27 60 50 50 0.56 513071
IR-8653 		DAC27600050
30 50 20 20 DE0678CS12 DAC30500020
30 54 24 24 DE0681CS16 DAC30540024
30 55 30 25 ATV-BB-2 DAC30550030/25
30 60.03 37 37 0.42 633313C 529891AB
545312 		B-81 DAC30600337
30 64 42 42 0.49 DAC30640042
34 62 37 37 0.41 309724B
311316B 		531910
561447 		IR-8051 DAC34620037
34 64 37 37 0.43 309726 532066DE
540466B 		B-35 DAC34640037
34 66 37 37 0.50 636114A 580400CA IR-8622 DAC34660037
35 64 37 37 0.41 510014 DAC35640037
35 65 35 35 0.40 443952EA 546238A IR-8042 DAC35650035
35 66 32 32 0.42 445980BA IR-8091 DAC35660032
35 66 33 33 0.43 633676 IR-8089 DAC35660033
35 66 37 37 0.48 311309 546238
544307 		IR-8065 DAC35660037
35 68 37 37 0.52 633295
633528
633967 		567918B
541153A 		B-33 DAC35680037
35 68.02 33 30 0.47 DAC3568W-6 DAC35680233/30
35 72 28 28 0.48 441832AB IR-8028 DAC35720028
35 72 33 33 0.58 446762
445535 		548083 IR-8055 DAC35720033
35 72 34 34 0.58 B36 DAC35720034
35 72.02 33 31 0.56 DAC357233B-1W DAC35720233/31
35 72.04 33 33 0.58 633669 IR-8094 DAC35720433
35 72.04 34 34 0.58 DAC35720434
36 72.05 34 34 0.58 1 B32 DAC36720534
36 76 29 27 DE0769 DAC36760029/27
37 72 37 37 0.59 633541B 562398A DAC37720037
37 72.04 37 37 0.59 633028 562398 DAC37720437
37 74 45 45 0.79 309946AC 541521C IR8513IR-8049 DAC37740045
37.99 72.04 36 33 0.54 51007
DAC3872W-3 		DAC38720436/33
37.99 74.02 36 33 0.58 DAC3874W DAC38740236/33
38 70 38 38 0.55 510012 DAC38700038
38 72.04 40 40 DE0871 DAC38720440
38 74 36 33 514002 DAC38740036/33
38 74.04 50 50 0.85 559912 51008 DAC38740450
39 68 37 37 0.48 311315DB
309692 		540733
528810 		B38 DAC39680037
39 68.06 37 37 0.48 311315BD DAC39680637
39 72 37 37 0.56 311396
309639 		542186A B83A DAC39720037
39 72.06 37 37 0.56 542186CA DAC39720637
39 74 39 39 0.66 DAC39740039
39/41 75 37 37 0.62 633815A 567447B DAC39/41750037
40 72 37 37 0.55 311443B 566719B DAC40720037
40 72.07 37 37 0.55 51004 DAC40720737
40 74 36 34 0.58 DAC4074BW DAC40740036/34
40 74.05 40 40 DE08A27 DAC40740540
40 75 37 37 0.62 633966E DAC40750037
40 76 33 28 0.54 474743 539166AB B39 DAC40760033/28
40 76.04 41 38 DE0891 DAC40760441/38
40 80 30.2 30.2 440320H 523854
565636 		DAC408000302
40 80 36 34 0.74 513036 DAC40800036/34
40 82 40 40 DAC40820040
40 84.025 38 38 0.97 IR-8638 DAC40840338
42 75 37 37 0.59 633457
311424
309245
633196 		533953
545495D
521771 		513102
513112
513106 		DAC42750037
42 75.07 37 37 633791 DAC42750737
42 76 38 35 IR-8650 DAC42760038/35
42 76 39 39 0.62 513058 DAC42760039
42 76 40 37 0.64 909042
309798 		547059A 513006 DAC42760040/37
42 80 36 34 0.72 MV4280 DAC42800036/34
42 80 45 45 0.85 DAC428045BW DAC42800045
42 80.03 42 42 0.81 309609AD
305988 		527243C DAC4280B DAC42800342
42 82 36 36 0.77 446047 561481
588226 		513073 DAC42820036
42 82 37 37 0.79 311413A 565636 IR-8090 DAC42820037
42 84 36 36 444090 564727 513151 DAC42840036
42 84 39 39 0.93 440090 543359B IR-8101 DAC42840039
42 84.02 36 36 444090AB DAC42840236
43/45 82 37 37 0.76 633814A 567519A IR-8506 DAC43/45820037
45 80 45 45 0.78 564725AB DAC45800045
45 84.02 39 39 513130 DAC45840239
45 85 41 41 0.89 580191 DAC45850041
49 88 46 46 DAC49880046
50 90 34 34 0.82 633007C 528514 DE1021 DAC50900034
50 90 35 35 DAC50900035
