Front wheel drive hub and bearing assembly

Front wheel drive hub and bearing assembly

0.00
0.00

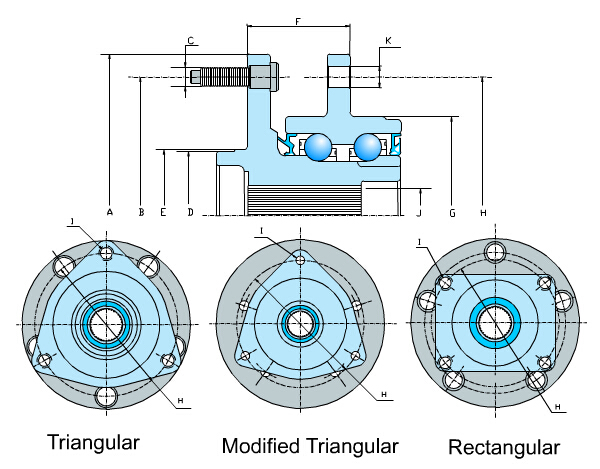

Dimensions(mm)(Quantity) Flange shape Item No.
A B C D E F G H I J K XLB
146.5 115 (5)M12x1.5 70.14 70.63 42.18 90.05 116 (3)12.96 33 Modified triangular 513059
144.5 120.65 (5)M12x1.5 70.14 70.63 47.26 81.5 120.65 (3)M12x1.75 27 Modified triangular 513061
140 114.3 (5)M12x1.5 N/A 73.32 37.5 87 N/A N/A 26 N/A 513074
125 100 (5)M12x1.5 57 58.33 43.18 78.5 98 (3) 11 33 Modified triangular 513004
125 100 (5)M12x1.5 57 57.77 42.18 71 102 (3)12.96 33 Modified triangular 513011
144.5 120.65 (5)M12x1.5 70.14 70.63 47.28 91.98 120.65 (3) M12x1.75 27 Modified triangular 513013
147 115 (5)M12x1.5 70.14 70.63 42.18 90.05 116 (3)12.96 27 Modified triangular 513016
125 100 (5)M12x1.5 57 58.33 44.43 73.5 98 (3)12.96 33 Modified triangular 513017
177.8 139.7 (6)M14x1.5 N/A 78.1 56.64 99.31 127 (3)14.68 33 Modified triangular 515001
144 114.3 (6)1/2-20UNF 72 73 54 97 -- (4)1/2-20UNF 31 Rectangular 513109
144.5 115 (5)M12x1.5 70.14 70.63 45 91 146 M10x1.5 / (4)11.25 33 Rectangular 513044
126 100 (5)M12x1.5 56 56.8 37.4 86.2 112 (4)M10x1.5 26 Rectangular 513075
144 114.3 (5)1/2-20UNF 71.43 73.32 57.6 86 114.3 (4)14.56 26 Rectangular 513082
153.5 114.3 (5)1/2-20UNF 71.43 71.93 54.18 100.13 120.65 (3)M12x1.75 26 Triangular 513084
145.5 115 (5)M12x1.5 70.14 70.63 42.18 91.34 116 (3)12.96 33 Triangular 513087
145.5 114.3 (5)M12x1.5 70.4 71.35 42.18 91.42 112 (3)M12x1.75 33 Triangular 513089
139 108 (5)M12x1.5 63.2 70.92 61.98 82.5 112 (3)12 26 Modified triangular 513100
144 101 (5)1/2-20UNF 72 N/A 46 100 121 (3)M12x1.75 27 Modified triangular 513107
182 139.7 (6)M14x1.5 N/A 78.1 50.55 99.31 127 (3)14.68 33 Modified triangular 515002
